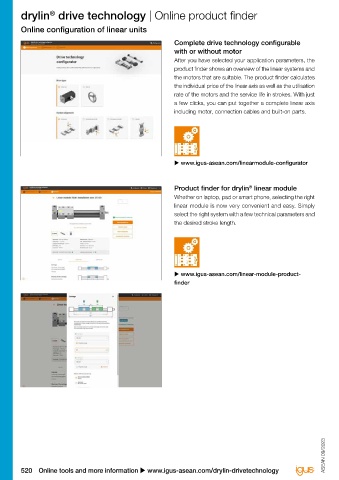

drylin drive technology | Online product finder
®
Online configuration of linear units

Complete drive technology configurable
with or without motor
After you have selected your application parameters, the
product finder shows an overview of the linear systems and
the motors that are suitable. The product finder calculates
the individual price of the linear axis as well as the utilisation
rate of the motors and the service life in strokes. With just
a few clicks, you can put together a complete linear axis
including motor, connection cables and built-on parts.

u www.igus-asean.com/linearmodule-configurator

Product finder for drylin linear module
®
Whether on laptop, pad or smart phone, selecting the right
linear module is now very convenient and easy. Simply
select the right system with a few technical parameters and
the desired stroke length.

u www.igus-asean.com/linear-module-product-
finder
drylin drive technology -
®

SHT linear modules

Drive: trapezoidal or high-helix lead screw

Ball-bearing mounted lead screw drives for

higher dynamic forces

Lead screws made from steel, stainless steel or

aluminium

Carriage in either quad block or compact design

ASEAN 09/2023 ASEAN 09/2023 Configurable online

520 Online tools and more information u www.igus-asean.com/drylin-drivetechnology
