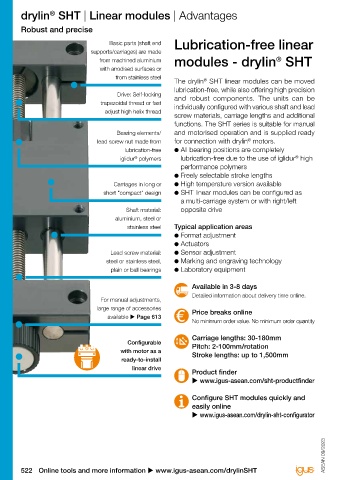

drylin SHT | Linear modules | Advantages drylin SHT | Linear modules | Product overview
®
®
Robust and precise 100% lubrication and maintenance-free

Basic parts (shaft end Lubrication-free linear
supports/carriages) are made
®
from machined aluminium modules - drylin SHT
with anodised surfaces or
from stainless steel
The drylin SHT linear modules can be moved
®
lubrication-free, while also offering high precision
Drive: Self-locking and robust components. The units can be SHT linear module - standard SHT-PL linear modules, pre-load
trapezoidal thread or fast individually configured with various shaft and lead ● Solid design ● Pre-loaded trapezoidal lead screw nuts, pre-load
adjust high helix thread ● Three different sizes force: 50N
screw materials, carriage lengths and additional
functions. The SHT series is suitable for manual ● Various materials for shaft and lead screw ● Manually and continuously adjustable radial clearance
Bearing elements/ and motorised operation and is supplied ready ● Maintenance-free and optionally corrosion-resistant ● Lightweight due to aluminium and polymer
u Page 525
u Page 524
®
lead screw nut made from for connection with drylin motors.
lubrication-free ● All bearing positions are completely
®
iglidur polymers lubrication-free due to the use of iglidur high
®
performance polymers
● Freely selectable stroke lengths
Carriages in long or ● High temperature version available
short "compact" design ● SHT linear modules can be configured as
a multi-carriage system or with right/left
Shaft material: opposite drive SHTC linear module - variable SHTS linear module - the fast one
With high helix lead screw
Design flexibility due to short carriages
aluminium, steel or ● Ideal for 2 carriages ● High-speed solution for fast positioning
stainless steel Typical application areas ● 5 sizes from Ø 12 up to 50mm ● Up to 100mm stroke/rotation
● Format adjustment ● ●
u Page 526
u Page 527
● Actuators
Lead screw material: ● Sensor adjustment
steel or stainless steel, ● Marking and engraving technology
plain or ball bearings ● Laboratory equipment

Available in 3-8 days
Detailed information about delivery time online.
For manual adjustments,
large range of accessories Price breaks online SHT-BB linear module - ball-bearing supported SHT-FF linear module - "Fast-Forward"
available u Page 613 ● Higher rotation speed and higher precision ● With quick-release mechanism
No minimum order value. No minimum order quantity
● Belt drive permits radial loads ● Precise and fast positioning
Carriage lengths: 30-180mm ● Constant drive torque ● Including self-locking brake
Configurable Pitch: 2-100mm/rotation ● Less axial clearance ● Only recommended for horizontal applications
with motor as a Stroke lengths: up to 1,500mm u Page 528 u Page 532
ready-to-install
linear drive
Product finder
u www.igus-asean.com/sht-productfinder

Configure SHT modules quickly and
easily online
u www.igus-asean.com/drylin-sht-configurator
SHT linear module made from stainless steel XY-tables
● All components (shaft end supports, carriages, shafts, ● XY tables standard and pre-load
lead screws) made of corrosion-resistant stainless steel u Page 534
