drylin DL | Linear modules | Product range drylin drive technology | Design and calculation
®
®

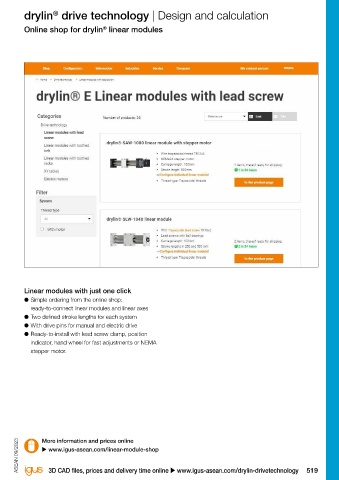

Linear modules with lead screw or toothed belt - deliverable within 24 hours Online shop for drylin linear modules
®

Example configurations:

®
®
drylin SHT-12, Tr10x2 drylin SLW-1040, Tr10x2 drylin SAW-0660, Ds10x25
®

With machined end Ø 6h9, With machined end Ø 6h9, With machined end Ø 6h9,
17mm length 17mm length 15mm length
DL-SHT-0926, 250mm stroke DL-SLW-0549, 250mm stroke DL-SAW-0085, 100mm stroke
DL-SHT-0927, 500mm stroke DL-SLW-0550, 500mm stroke DL-SAW-0086, 500mm stroke

With position indicator, lead screw With position indicator, lead screw
clamp and hand wheel clamp and hand wheel
DL-SHT-0928, 250mm stroke DL-SLW-0551, 250mm stroke
DL-SHT-0929, 500mm stroke DL-SLW-0552, 500mm stroke

®
®
drylin ZLW-0660-S drylin SAW-0630, Tr8x1.5 drylin ZLW-1040-B
®

Linear modules with just one click
● Simple ordering from the online shop:
ready-to-connect linear modules and linear axes
● Two defined stroke lengths for each system
● With drive pins for manual and electric drive
● Ready-to-install with lead screw clamp, position
indicator, hand wheel for fast adjustments or NEMA
stepper motor.

Toothed belt axis ZLW-0660-S With NEMA17 stepper motor With NEMA23 stepper motor
DL-ZLW-0709, 250mm stroke with stranded wires with stranded wires
DLE-SA-0004, 250mm stroke DLE-SA-0002, 500mm stroke

Toothed belt axis ZLW-1080-S SAW-1040 linear module, Tr10x2 Toothed belt axis ZLW-1080-S
DL-ZLW-0711, 500mm stroke With NEMA23 stepper motor With NEMA23XL stepper motor
DL-ZLW-00712, 1,000mm stroke with stranded wires with stranded wires
DLE-SA-0005, 500mm stroke DLE-SA-0003, 1,000mm stroke More information and prices online

ASEAN 09/2023 ASEAN 09/2023 u www.igus-asean.com/linear-module-shop

518 Online tools and more information u www.igus-asean.com/drylin-drivetechnology 3D CAD files, prices and delivery time online u www.igus-asean.com/drylin-drivetechnology 519
