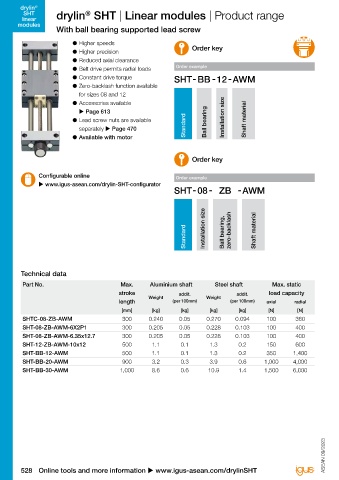

Page 530 - IGUS Linear

drylin drylin
®
®
®
®
SHT drylin SHT | Linear modules | Product range drylin SHT | Linear modules | Product range SHT
linear linear
modules modules
With ball bearing supported lead screw
● Higher speeds l + stroke
● Higher precision Order key
● Reduced axial clearance
● Belt drive permits radial loads Order example d l2 d l2
● Constant drive torque T E2 d2 E1 T E2 d2 E1
● Zero-backlash function available
for sizes 08 and 12
● Accessories available E3 E3
u Page 613 lt Al lt lt sg Al lt
● Lead screw nuts are available Ball bearing Installation size Shaft material tk sg tk
ts
ts
separately u Page 470 Standard kt kt
● Available with motor H kq ha H kq ha
tg s tg s
R R
f sk f sk
A A
Order key

Configurable online Order example
u www.igus-asean.com/drylin-SHT-configurator

Standard Installation size Ball bearing, zero-backlash Shaft material

Technical data Dimensions [mm]

Part No. Max. Aluminium shaft Steel shaft Max. static Part No. A AI H E1 E2 E3 I R f lt tk ts
stroke addit. addit. load capacity -0.3 -0.3 ±0.15 ±0.15 ±0.15
Weight Weight
length (per 100mm) (per 100mm) axial radial SHTC-08-ZB-AWM 65 38 23 52 55 26 96 32 1.5 15.5 10 5.5
[mm] [kg] [kg] [kg] [kg] [N] [N] SHT-08-ZB-AWM-6X2P1 65 65 23 52 55 55 96 32 1.5 15.5 10 5.5
SHTC-08-ZB-AWM 300 0.240 0.05 0.270 0.094 100 360 SHT-08-ZB-AWM-6.35x12.7 65 65 23 52 55 55 96 32 1.5 15.5 10 5.5
SHT-08-ZB-AWM-6X2P1 300 0.205 0.05 0.228 0.103 100 400 SHT-12-ZB-AWM-10x12 85 85 34 70 73 73 145 42 2 30 11 6.6
SHT-08-ZB-AWM-6.35x12.7 300 0.205 0.05 0.228 0.103 100 400 SHT-BB-12-AWM 85 85 34 70 73 73 145 42 2 30 11 6.6
SHT-12-ZB-AWM-10x12 500 1.1 0.1 1.3 0.2 150 600 SHT-BB-20-AWM 130 130 48 108 115 115 202 72 2 36 15 9.0
SHT-BB-12-AWM 500 1.1 0.1 1.3 0.2 350 1,400 SHT-BB-30-AWM 180 180 68 150 158 158 280 96 4 50 20 13.5
SHT-BB-20-AWM 900 3.2 0.3 3.9 0.6 1,000 4,000 Part No. tg kt Øs sk sg kq d T l2 d2 ha
SHT-BB-30-AWM 1,000 8.6 0.6 10.9 1.4 1,500 6,000
±0.1 Standard
SHTC-08-ZB-AWM M6x8 7 4.2 8 M5 4.6 8 6 / 6.35 15 6 / 6.35 13
SHT-08-ZB-AWM-6X2P1 M6x8 7 4.2 8 M5 4.6 8 Tr6x2 15 Tr6x2 92) 13
SHT-08-ZB-AWM-6.35x12.7 M6x8 7 4.2 8 M5 4.6 8 6.35x12.7 15 6.35 92) 13
SHT-12-ZB-AWM-10x12 M8x18 6.4 6.3 10 M6 6.0 12 10x12 17 10x12 92) 18
SHT-BB-12-AWM M8x18 6.4 6.3 10 M6 6.0 12 Tr10x2 17 Tr10x2 92) 18
SHT-BB-20-AWM M10x23 8.6 6.4 11 M8 7.0 20 Tr18x4 26 12h9 23
SHT-BB-30-AWM M16x25 12.6 11.0 18 M12 10.6 30 Tr24x5 38 14h9 36
ASEAN 09/2023 ASEAN 09/2023 Lead screw end unmachined
92)

528 Online tools and more information u www.igus-asean.com/drylinSHT 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinSHT 529
