Page 533 - IGUS Linear

drylin drylin
®
®
®
®
SHT drylin SHT | Linear modules | Product range drylin SHT | Linear modules | Product range SHT
linear linear
modules modules

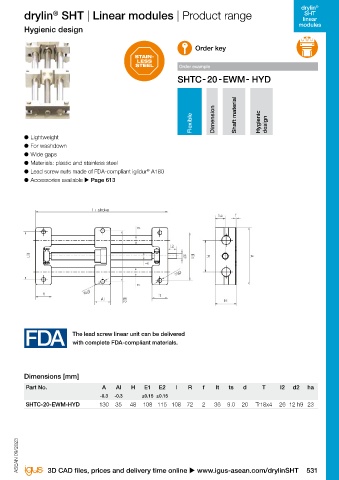

Made of stainless steel Hygienic design
● Corrosion-resistant carriages
and shaft end supports made of Order key Order key
stainless steel
● High grade stainless steel shafts Order example Order example
(AISI 440B)
● Choice of bearing material:
iglidur J = Standard
®
iglidur A180 = FDA-compliant
®
iglidur X = High temperature Stainless steel Bearing material Installation size
®
up to +150°C 117) Standard d l2 Flexible Dimension Shaft material Hygienic
● Can be configured online as design
SHTC compact version T l + stroke E2 d2 ● E1 Lightweight
● For washdown
● Wide gaps
d l2
● Materials: plastic and stainless steel
E2
T E3 d2 E1
®
Configurable online ● Lead screw nuts made of FDA-compliant iglidur A180
u www.igus-asean.com/drylin-SHT-configurator lt Al lt ● Accessories available u Page 613
tk sg
ts E3
kt lt Al lt
tk sg
H ts I + stroke
kt kq ha
H tg s
R ha
f kq sk
A R tg s
f sk
A
Technical data
Part No. Max. Steel shaft Max. static load capacity
stroke length Weight additional (per 100mm) axial radial
[mm] [kg] [kg] [N] [N]
SHT-ESJ-08 300 1.01 0.1 100 360
SHT-ESJ-12 750 2.81 0.24 700 2,800
SHT-ESJ-20 1,000 8.72 0.7 1,600 6,400
SHT-ESJ-30 1,250 24.11 1.47 2,500 10,000

Dimensions [mm]

Part No. A AI H E1 E2 E3 I R f lt tk ts The lead screw linear unit can be delivered
-0.3 -0.3 ±0.15 ±0.15 ±0.15
with complete FDA-compliant materials.
SHT-ESJ-08 65 65 23 52 55 55 96 32 1.5 15.5 10 5.5
SHT-ESJ-12 85 85 34 70 73 73 145 42 2 30 11 6.6
SHT-ESJ-20 130 130 48 108 115 115 202 72 2 36 15 9.0
SHT-ESJ-30 180 180 68 150 158 158 280 96 4 50 20 13.5 Dimensions [mm]

Part No. tg kt Øs sk sg kq d T l2 d2 ha Part No. A Al H E1 E2 I R f It ts d T I2 d2 ha
±0.1 Standard -0.3 -0.3 ±0.15 ±0.15
SHT-ESJ-08 M6x8 7 4.2 8 M5 4.6 8 Tr6x2 17 Tr6x2 13 SHTC-20-EWM-HYD 130 35 48 108 115 108 72 2 36 9.0 20 Tr18x4 26 12 h9 23
SHT-ESJ-12 M8x18 6.4 6.3 10 M6 6.0 12 Tr10x2 17 Tr10x2 92) 18
SHT-ESJ-20 M10x23 8.6 6.4 11 M8 7.0 20 Tr18x4 26 12h9 23
SHT-ESJ-30 M16x25 12.6 11.0 18 M12 10.6 30 Tr24x5 38 14h9 36
92) Lead screw end unmachined
117) In the event of severe temperature fluctuations during transport, storage and use, thermal expansion effects
cannot be ruled out ASEAN 09/2023 ASEAN 09/2023
530 Online tools and more information u www.igus-asean.com/drylinSHT 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinSHT 531
