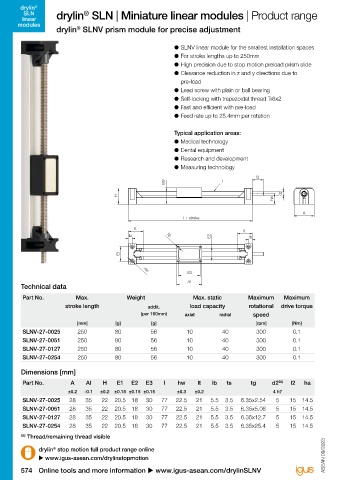

drylin
®
®
SLN drylin SLN | Miniature linear modules | Product range
linear
modules
drylin SLNV prism module for precise adjustment
®
● SLNV linear module for the smallest installation spaces
● For stroke lengths up to 250mm
● High precision due to stop motion preload prism slide
● Clearance reduction in z and y directions due to
pre-load
● Lead screw with plain or ball bearing
● Self-locking with trapezoidal thread Tr6x2
● Fast and efficient with pre-load
● Feed rate up to 25.4mm per rotation

Typical application areas:
● Medical technology
● Dental equipment
● Research and development
● Measuring technology
2 l
hW T

d2
H
ha
A
H + l I + strok be
u
t l
t l
b l tg E2 b l

E1

nts
E 3
l A
Technical data drylin general drive technology -
®
Part No. Max. Weight Max. static Maximum Maximum
stroke length addit. load capacity rotational drive torque toothed belt axes
(per 100mm) axial radial speed
[mm] [g] [g] [rpm] [Nm]
SLNV-27-0025 250 80 56 10 40 300 0.1
SLNV-27-0051 250 80 56 10 40 300 0.1 Lubrication-free linear modules based on
SLNV-27-0127 250 80 56 10 40 300 0.1 ®
SLNV-27-0254 250 80 56 10 40 300 0.1 drylin W guides

Dimensions [mm] Drive: Toothed belt
Part No. A AI H E1 E2 E3 I hw lt lb ts tg d2 98) I2 ha
±0.2 -0.1 ±0.2 ±0.15 ±0.15 ±0.15 ±0.3 ±0.2 4 h7 For fast positioning
SLNV-27-0025 28 35 22 20.5 18 30 77 22.5 21 5.5 3.5 6.35x2.54 5 15 14.5
SLNV-27-0051 28 35 22 20.5 18 30 77 22.5 21 5.5 3.5 6.35x5.08 5 15 14.5 End supports with deep groove ball bearings
SLNV-27-0127 28 35 22 20.5 18 30 77 22.5 21 5.5 3.5 6.35x12.7 5 15 14.5
SLNV-27-0254 28 35 22 20.5 18 30 77 22.5 21 5.5 3.5 6.35x25.4 5 15 14.5 As single axis or for multi-axis linear robots
98) Thread/remaining thread visible

drylin stop motion full product range online
®
u www.igus-asean.com/drylinstopmotion ASEAN 09/2023 ASEAN 09/2023
574 Online tools and more information u www.igus-asean.com/drylinSLNV
