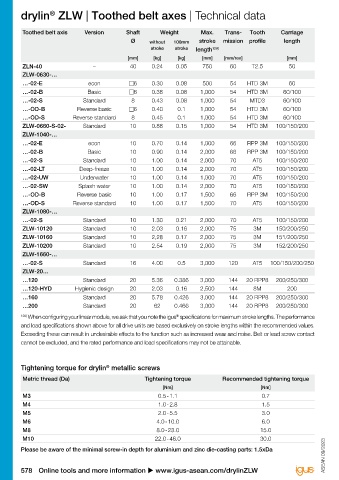

drylin ZLW | Toothed belt axes | Technical data
®

Toothed belt axis Version Shaft Weight Max. Trans- Tooth Carriage Max. Toothed belt Toothed Toothed Guide bearing Max. Max. Idle Max.
Ø without 100mm stroke mission profile length radial material belt belt speed position torque drive
stroke stroke length 120) load width tension accuracy torque
[mm] [kg] [kg] [mm] [mm/rev] [mm] [N] [mm] [N] [m/s] [mm] [Nm] [Nm]
ZLN-40 – 40 0.24 0.05 750 60 T2.5 50 45 PU with steel 6 30 Deep groove ball bearings 2.0 ± 0.30 0.15 0.4
ZLW-0630-…
…-02-E econ 6 0.30 0.08 500 54 HTD 3M 60 30 Neoprene with GF 9 20 Deep groove ball bearings 1.0 ± 0.40 0.10 0.30
…-02-B Basic 6 0.38 0.08 1,000 54 HTD 3M 60/100 100 Neoprene with GF 9 75 Deep groove ball bearings 2.0 ± 0.35 0.10 0.75
…-02-S Standard 8 0.43 0.08 1,000 54 MTD3 60/100 150 PU with steel 9 100 Deep groove ball bearings 2.0 ± 0.30 0.15 1.00
…-OD-B Reverse basic 6 0.40 0.1 1,000 54 HTD 3M 60/100 50 Neoprene with GF 9 75 Deep groove ball bearings 1.0 ± 0.35 0.10 0.75
…-OD-S Reverse standard 8 0.45 0.1 1,000 54 HTD 3M 60/100 75 PU with steel 9 100 Deep groove ball bearings 1.0 ± 0.30 0.15 1.00
ZLW-0660-S-02- Standard 10 0.88 0.15 1,000 54 HTD 3M 100/150/200 150 PU with steel 15 100 Deep groove ball bearings 5.0 ± 0.30 0.15 1.25
ZLW-1040-…
…-02-E econ 10 0.70 0.14 1,000 66 RPP 3M 100/150/200 100 Neoprene with GF 15 50 Deep groove ball bearings 2.0 ± 0.35 0.1 0.5
…-02-B Basic 10 0.90 0.14 2,000 66 RPP 3M 100/150/200 200 Neoprene with GF 16 150 Deep groove ball bearings 3.0 ± 0.30 0.2 1.75
…-02-S Standard 10 1.00 0.14 2,000 70 AT5 100/150/200 300 PU with steel 16 200 Deep groove ball bearings 5.0 ± 0.20 0.3 2.40
…-02-LT Deep-freeze 10 1.00 0.14 2,000 70 AT5 100/150/200 300 TPUKF2 16 200 Cold ball bearing 5.0 ± 0.20 0.3 2.40
…-02-UW Underwater 10 1.00 0.14 1,000 70 AT5 100/150/200 100 PU + Aramid 16 50 xiros ball bearings 1.0 ± 0.50 0.15 0.50
®
…-02-SW Splash water 10 1.00 0.14 2,000 70 AT5 100/150/200 200 PU + stainless steel 16 200 Stainless steel ball bearing 5.0 ± 0.20 0.30 2.40
…-OD-B Reverse basic 10 1.00 0.17 1,500 66 RPP 3M 100/150/200 100 Neoprene with GF 16 150 Deep groove ball bearings 1.5 ± 0.30 0.15 1.75
…-OD-S Reverse standard 10 1.00 0.17 1,500 70 AT5 100/150/200 150 PU with steel 16 200 Deep groove ball bearings 2.5 ± 0.20 0.25 2.40
ZLW-1080-…
…-02-S Standard 10 1.30 0.21 2,000 70 AT5 100/150/200 300 PU with steel 16 200 Deep groove ball bearings 5.0 ± 0.20 0.25 2.40
ZLW-10120 Standard 10 2.03 0.16 2,000 75 3M 150/200/250 300 Neoprene with GF 15 200 Deep groove ball bearings 5.0 ± 0.20 0.35 2.50
ZLW-10160 Standard 10 2,28 0.17 2,000 75 3M 151/200/250 300 Neoprene with GF 15 200 Deep groove ball bearings 5.0 ± 0.20 0.35 2.50
ZLW-10200 Standard 10 2.54 0.19 2,000 75 3M 152/200/250 300 Neoprene with GF 15 200 Deep groove ball bearings 5.0 ± 0.20 0.35 2.50
ZLW-1660-…
…-02-S Standard 16 4.00 0.5 3,000 120 AT5 100/150/200/250 2,000 PU with steel 32 500 Deep groove ball bearings 5.0 ± 0.20 0.4 10.00
ZLW-20…
…120 Standard 20 5.36 0.386 3,000 144 20 RPP8 200/250/300 3,000 PU with stainless steel 20 750 Deep groove ball bearings 5.0 ± 0.20 1.0 15.00
…120-HYD Hygienic design 20 2.03 0.16 2,500 144 8M 200 750 PU (FDA) with stainless steel 20 750 FDA-compliant deep groove ball bearings 5.0 ± 0.20 1.0 15.00
…160 Standard 20 5.78 0.426 3,000 144 20 RPP8 200/250/300 3,000 PU with stainless steel 20 750 Deep groove ball bearings 5.0 ± 0.20 1.0 15.00
…200 Standard 20 62 0.466 3,000 144 20 RPP8 200/250/300 3,000 PU with stainless steel 20 750 Deep groove ball bearings 5.0 ± 0.20 1.0 15.00

®
120) When configuring your linear module, we ask that you note the igus specifications for maximum stroke lengths. The performance The technical values in the specifications are maximum values for each criterion, e.g. speed, stroke length etc.; they are
and load specifications shown above for all drive units are based exclusively on stroke lengths within the recommended values. not cumulative values. Suitability under consideration of the individual parameters for usage can be checked online at
Exceeding these can result in undesirable effects to the function such as increased wear and noise. Belt or lead screw contact www.igus-asean.com/linearmodule-finder.
cannot be excluded, and the rated performance and load specifications may not be attainable.

Drive pin alignment for all ZLW toothed belt axis

®
Tightening torque for drylin metallic screws x Viewing direction Drive shaft
Metric thread (Da) Tightening torque Recommended tightening torque L: Drive pin left
1
[Nm] [Nm] Left 2 R: Drive pin right
right
M3 0.5 - 1.1 0.7 L/R: Drive pin, both sides
M4 1.0 - 2.8 1.5
M5 2.0 - 5.5 3.0
M6 4.0 - 10.0 6.0
M8 8.0 - 23.0 15.0
M10 22.0 - 46.0 30.0
ASEAN 09/2023 ASEAN 09/2023 Drive shaft
Please be aware of the minimal screw-in depth for aluminium and zinc die-casting parts: 1.5xDa
