drylin drylin
®
®
®
®

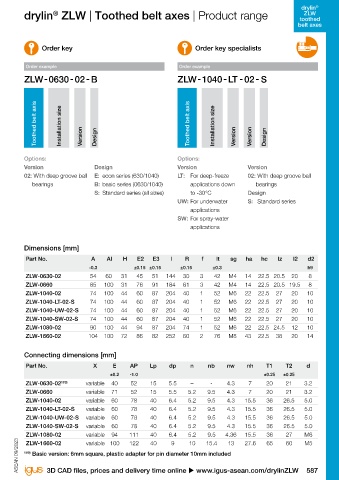

ZLW drylin ZLW | Toothed belt axes | Product range drylin ZLW | Toothed belt axes | Product range ZLW
toothed toothed
belt axes belt axes
Toothed belt axis in econ, basic and standard version
Order key Order key specialists

Order example Order example

Toothed belt axis Installation size Toothed belt axis Installation size

● Fast positioning of small loads Version Version Version
● Quiet operation and flat design Design Design
● Drive pin on one or both sides
● Linear carriages available in different lengths Options: Options:
(except for econ version) Version Design Version Version
● Configurable with motor as a ready-to-install 02: With deep groove ball E: econ series (630/1040) LT: For deep-freeze 02: With deep groove ball
linear drive bearings B: basic series (0630/1040) applications down bearings
● Specialist in deep-freeze, underwater and spray-water S: Standard series (all sizes) to -30°C Design
areas u Page 585 UW: For underwater S: Standard series
applications
I + stroke
SW: For spray-water
applications

Dimensions [mm]
Part No. A AI H E2 E3 l R f lt sg ha hc lz l2 d2
-0.3 ±0.15 ±0.15 ±0.15 ±0.3 h9
ZLW-0630-02 54 60 31 45 51 144 30 3 42 M4 14 22.5 20.5 20 8
ZLW-0660 85 100 31 76 91 184 61 3 42 M4 14 22.5 20.5 19.5 8
ZLW-1040-02 74 100 44 60 87 204 40 1 52 M6 22 22.5 27 20 10
ZLW-1040-LT-02-S 74 100 44 60 87 204 40 1 52 M6 22 22.5 27 20 10
ZLW-1040-UW-02-S 74 100 44 60 87 204 40 1 52 M6 22 22.5 27 20 10
ZLW-1040-SW-02-S 74 100 44 60 87 204 40 1 52 M6 22 22.5 27 20 10
ZLW-1080-02 90 100 44 94 87 204 74 1 52 M6 22 22.5 24.5 12 10
ZLW-1660-02 104 100 72 86 82 252 60 2 76 M8 43 22.5 38 20 14

Connecting dimensions Connecting dimensions [mm]
Part No. X E AP Lp dp n nb nw nh T1 T2 d
nhnh
±0.2 -1.0 ±0.25 ±0.25
T2 T2 nw nw ZLW-0630-02 109) variable 40 52 15 5.5 – - 4.3 7 20 21 3.2
ZLW-0660 variable 71 52 15 5.5 5.2 9.5 4.3 7 20 21 3.2
dp
dp
d d
ZLW-1040-02 variable 60 78 40 6.4 5.2 9.5 4.3 15.5 36 26.5 5.0
T1 T1 AP AP ZLW-1040-LT-02-S variable 60 78 40 6.4 5.2 9.5 4.3 15.5 36 26.5 5.0
n n nb nb ZLW-1040-UW-02-S variable 60 78 40 6.4 5.2 9.5 4.3 15.5 36 26.5 5.0
hchc ZLW-1040-SW-02-S variable 60 78 40 6.4 5.2 9.5 4.3 15.5 36 26.5 5.0
LpLp
ZLW-1080-02 variable 94 111 40 6.4 5.2 9.5 4.36 15.5 36 27 M6
ASEAN 09/2023 ASEAN 09/2023 Basic version: 6mm square, plastic adapter for pin diameter 10mm included
E E ZLW-1660-02 variable 100 122 40 9 10 15.4 13 27.6 65 60 M5
X X 109)
