drylin drylin
®
®
®
®
ZLW drylin ZLW | Toothed belt axes | Product range drylin ZLW | Toothed belt axes | Product range ZLW
toothed toothed
belt axes belt axes

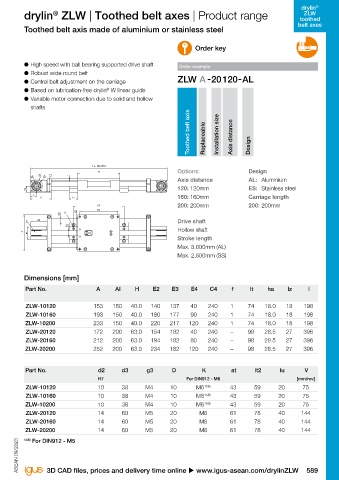

Modular kit for toothed belt axes Toothed belt axis made of aluminium or stainless steel
Order key
Aluminium version
● High speed with ball bearing supported drive shaft Order example
● Robust wide round belt
● Central belt adjustment on the carriage
● Based on lubrication-free drylin W linear guide
®
● Variable motor connection due to solid and hollow
shafts
Toothed belt axis Replaceable Installation size Axis distance Design
Stainless steel version

l + Hub
I + stroke
l + Hub
AI AI Options: Design
H
d2 d2 d3 d3 g3 g3 H f f Axis distance AL: Aluminium
ZLWA design with ha ha 120: 120mm ES: Stainless steel
exchangeable liners lz lt lu
lz
lt lu 160: 160mm Carriage length
C4 200: 200mm 200: 200mm
C4
E3
ØDØD K K E2E2 E3
V lt2 Drive shaft
V lt2
E4E4 Hollow shaft
A
A at at
Stroke length
Hygienic design Max. 3.000mm (AL)
u Page 590 Max. 2,500mm (SS)

Dimensions [mm]

Part No. A AI H E2 E3 E4 C4 f lt ha lz l

Tandem toothed belt axis ZLW-10120 153 150 40.0 140 137 40 240 1 74 18.0 18 198
u Page 591 ZLW-10160 193 150 40.0 180 177 90 240 1 74 18.0 18 198
ZLW-10200 233 150 40.0 220 217 120 240 1 74 18.0 18 198
ZLW-20120 172 200 63.0 154 182 40 240 – 98 28.5 27 396
ZLW-20160 212 200 63.0 194 182 80 240 – 98 28.5 27 396
ZLW-20200 252 200 63.0 234 182 120 240 – 98 28.5 27 396
Technical data
Part No. Max. stroke length Transmission Tooth Toothed belt material Toothed belt Part No. d2 d3 g3 D K at lt2 lu V
-ES -AL profile tension H7 For DIN912 - M6 [mm/rev]
[mm] [mm] [mm/rev] [N] ZLW-10120 10 38 M4 10 M6 158) 43 59 20 75
ZLW-10120 166) 2,000 2,000 75 3M Neoprene with fibre glass 200 ZLW-10160 10 38 M4 10 M6 158) 43 59 20 75
ZLW-10160 166) 2,000 2,000 75 3M Neoprene with fibre glass 200 ZLW-10200 10 38 M4 10 M6 158) 43 59 20 75
ZLW-10200 166) 2,000 2,000 75 3M Neoprene with fibre glass 200 ZLW-20120 14 60 M5 20 M8 61 78 40 144
ZLW-20120 2,500 3,000 144 8M PU with stainless steel reinforcement 750 ZLW-20160 14 60 M5 20 M8 61 78 40 144
ZLW-20160 2,500 3,000 144 8M PU with stainless steel reinforcement 750 ZLW-20200 14 60 M5 20 M8 61 78 40 144
ZLW-20200 2,500 3,000 144 8M PU with stainless steel reinforcement 750 158) For DIN912 - M5
ASEAN 09/2023 ASEAN 09/2023
166) Option for WJ200UMA pillow blocks with exchangeable liners, ZLWA-

588 Online tools and more information u www.igus-asean.com/drylinZLW 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinZLW 589
