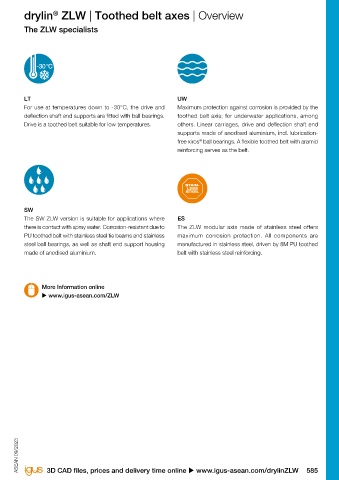

drylin ZLW | Toothed belt axes | Product overview drylin ZLW | Toothed belt axes | Overview
®
®
The ZLW specialists

econ series

Many infeed movements require cost-effective linear axes
that focus on pure adjustment tasks. This econ series
with toothed belt was developed for the fast positioning of
light loads. With its compact design and being lightweight
due to aluminium and plastic, the ZLW econ is the perfect
alternative to self-made solutions. LT UW
For use at temperatures down to -30°C, the drive and Maximum protection against corrosion is provided by the
deflection shaft end supports are fitted with ball bearings. toothed belt axis; for underwater applications, among
Basic series Drive is a toothed belt suitable for low temperatures. others. Linear carriages, drive and deflection shaft end
Lubrication-free linear guide also driven by a toothed belt supports made of anodised aluminium, incl. lubrication-
made from fibre-glass reinforced neoprene (black). The drive free xiros ball bearings. A flexible toothed belt with aramid
®
shaft, consisting of a square stainless steel and toothed reinforcing serves as the belt.
pulley made of high-performance polymer, rests on 2 deep
groove ball bearings. The drive pin is 6x6mm square and
made of stainless steel. The scope of delivery includes a
plastic adapter for a pin diameter of 10mm.

Standard series SW
The lubrication-free linear guide is also driven by a toothed The SW ZLW version is suitable for applications where ES
belt made from steel reinforced polyurethane (white). there is contact with spray water. Corrosion-resistant due to The ZLW modular axis made of stainless steel offers
Deflection shaft and drive pulley (single-piece) are made PU toothed belt with stainless steel tie beams and stainless maximum corrosion protection. All components are
from plated steel or stainless steel. The pulley shafts are steel ball bearings, as well as shaft end support housing manufactured in stainless steel, driven by 8M PU toothed
mounted in two deep groove ball bearings. made of anodised aluminium. belt with stainless steel reinforcing.

Modular kit series
A high degree of flexibility characterises the ZLW modular More Information online
system series. A modular construction system based on u www.igus-asean.com/ZLW
individual rails from the drylin W linear system. 3 widths
®
up to 200mm, 8M PU with stainless steel reinforcement
for smooth running, either in aluminium or stainless steel.
