drylin
®
®
ZLW drylin econ | Linear axes | ZLN econ
toothed
belt axes
Cost-effective, space-saving low-cost toothed belt axis

Order key

Order example

Toothed belt axis Installation size

● Motor can now be mounted on the bottom as well as l + stroke
on top Al lt
f
● Low-profile design, 27mm height H
● Vertical load from 30N
● Ready-to-install with NEMA stepper motors or BLDC/ LM*
DC motors
● Delivery from 24 hours

ltm dp
X E3 sg
E2
AM A

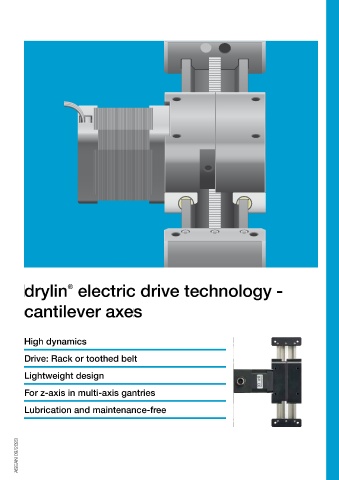

drylin electric drive technology -
®
Technical data
Part No. Max. Weight addit. Max. static load capacity Shaft end support cantilever axes
stroke length [kg] axial radial material
[mm] [kg] (per 100mm) [N] [N] [Nm]
ZLN-40 750 0.24 0.05 30 80 0.15
High dynamics
Dimensions [mm]
Drive: Rack or toothed belt
Part No. A AI H X E2 E3 AM LM lt ltm dp sg I v f

Lightweight design
ZLN-40 40 50 28 60 32 42 42.5 70 30 61.5 4.5 M3 141.5 60 2.8

For z-axis in multi-axis gantries

Lubrication and maintenance-free

ASEAN 09/2023 ASEAN 09/2023

594 Online tools and more information u www.igus-asean.com/drylinZLW
