drylin drylin E | Motors | Product range drylin | DC motors | Characteristic curves drylin
®
®
®
motors motors

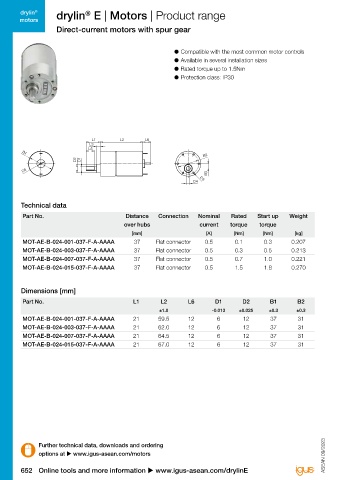

Direct-current motors with spur gear Characteristic curves 24VDC
MOT-DC-22-F-A-D MOT-DC-22-F-A-E
● Compatible with the most common motor controls 0.6 0.80 0.6
● Available in several installation sizes 0.12
● Rated torque up to 1.5Nm
● Protection class: IP30 0.4
0.40 0.3
0.06
0.2
M [Nm] I [A] M [Nm] I [A]

0.00 0.0 0.00 0.0
0 n [rpm] 116 232 347 463 0 n [rpm] 42 85 127 169
L1 L2 L6
L3 MOT-DC-22-F-A-J
L5
B1 0.30 0.4
B2
D2 D1
D5
B3
D4 D3
0.15 0.2

Technical data

Part No. Distance Connection Nominal Rated Start up Weight M [Nm] I [A]
over hubs current torque torque 0.00 0.0
0 n [rpm] 11 23 34 45
[mm] [A] [Nm] [Nm] [kg]
MOT-AE-B-024-001-037-F-A-AAAA 37 Flat connector 0.5 0.1 0.3 0.207
MOT-AE-B-024-003-037-F-A-AAAA 37 Flat connector 0.5 0.3 0.5 0.213 Characteristic curves 12VDC
MOT-AE-B-024-007-037-F-A-AAAA 37 Flat connector 0.5 0.7 1.0 0.221
MOT-AE-B-024-015-037-F-A-AAAA 37 Flat connector 0.5 1.5 1.8 0.270 MOT-DC-22-F-A-D MOT-DC-22-F-A-E
0.06 0.80 0.4

0.2
Dimensions [mm]
0.04
Part No. L1 L2 L6 D1 D2 B1 B2
±1.0 -0.013 ±0.025 ±0.3 ±0.3 0.40 0.2
MOT-AE-B-024-001-037-F-A-AAAA 21 59.5 12 6 12 37 31 0.1
0.02
MOT-AE-B-024-003-037-F-A-AAAA 21 62.0 12 6 12 37 31
MOT-AE-B-024-007-037-F-A-AAAA 21 64.5 12 6 12 37 31 M [Nm] I [A] M [Nm] I [A]
MOT-AE-B-024-015-037-F-A-AAAA 21 67.0 12 6 12 37 31 0.00 0.0 0.00 0.0
0 n [rpm] 58 116 174 232 0 n [rpm] 21 42 63 85

Further technical data, downloads and ordering
options at u www.igus-asean.com/motors ASEAN 09/2023 ASEAN 09/2023 Torque ------- Max. continuous torque Motor current
