drylin drylin E | Motors | Characteristic curves drylin E | Motors | Product range drylin
®
®
motors motors

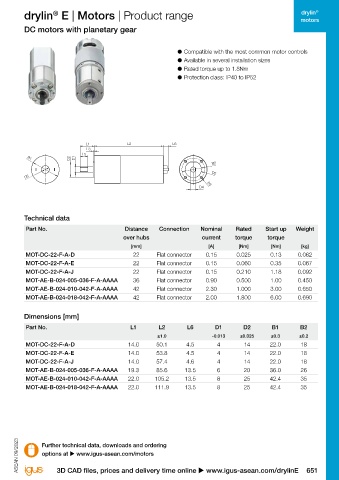

Characteristic curves for EC motors DC motors with planetary gear
Flange size 42 (NEMA17) Flange size 56 (NEMA23) Compatible with the most common motor controls

MOT-EC-42-... MOT-EC-56-... ●
● Available in several installation sizes
1.00 2.00 Rated torque up to 1.8Nm
0.90 1.80 ●
0.80 1.60 ● Protection class: IP40 to IP52
0.70 1.40
0.60 1.20
0.50 1.00
0.40 0.80
0.30 0.60
0.20 0.40
M [Nm] 0.10 M [Nm] 0.20
0.00
0.00
1 10 100 1,000 3,000 1 10 100 1,000 3,000 L1 L1 L1 L2 L2 L2 L6 L6 L6
n [rpm] n [rpm] L3 L3 L3
L5 L5
D2 D2
B1 B1 B1 D1 D1 D2 L5 D1
B2 B2 B2
Flange size 60 (NEMA24) Flange size 86 (NEMA34) D5 D5 D5 D2 D2 D2
MOT-EC-60-... MOT-EC-86-... D4 D3 D4 D3 D4 D3
2.80 3.50
2.40 3.00
2.00 2.50
Technical data
1.60 2.00
Part No. Distance Connection Nominal Rated Start up Weight
1.20 1.50
over hubs current torque torque
0.80 1.00
[mm] [A] [Nm] [Nm] [kg]
M [Nm] 0.40 M [Nm] 0.50 MOT-DC-22-F-A-D 22 Flat connector 0.15 0.025 0.13 0.062

0.00
0.00
0.067
0.35
0.060
MOT-DC-22-F-A-E
0.15
22
Flat connector
1 10 100 1,000 3,000 1 10 100 1,000 3,000 MOT-DC-22-F-A-J 22 Flat connector 0.15 0.210 1.18 0.092
n [rpm] n [rpm] MOT-AE-B-024-005-036-F-A-AAAA 36 Flat connector 0.90 0.500 1.00 0.450
MOT-AE-B-024-010-042-F-A-AAAA 42 Flat connector 2.30 1.000 3.00 0.650
MOT-AE-B-024-018-042-F-A-AAAA 42 Flat connector 2.00 1.800 6.00 0.690
Dimensions [mm]
Part No. L1 L2 L6 D1 D2 B1 B2
±1.0 -0.013 ±0.025 ±0.3 ±0.2
MOT-DC-22-F-A-D 14.0 50.1 4.5 4 14 22.0 18
MOT-DC-22-F-A-E 14.0 53.8 4.5 4 14 22.0 18
MOT-DC-22-F-A-J 14.0 57.4 4.6 4 14 22.0 18
MOT-AE-B-024-005-036-F-A-AAAA 19.3 85.6 13.5 6 20 36.0 26
MOT-AE-B-024-010-042-F-A-AAAA 22.0 105.2 13.5 8 25 42.4 35
MOT-AE-B-024-018-042-F-A-AAAA 22.0 111.9 13.5 8 25 42.4 35

------- 48VDC nominal 48VDC peak Further technical data, downloads and ordering
The characteristic curves are determined in quarter options at u www.igus-asean.com/motors
step mode ASEAN 09/2023 ASEAN 09/2023
