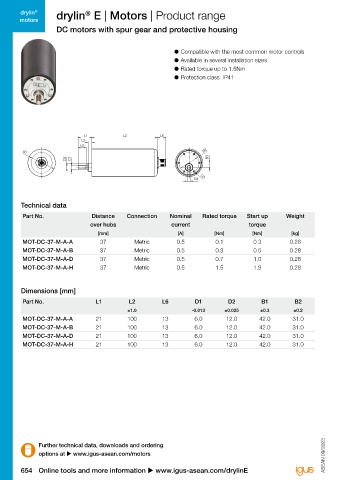

drylin drylin E | Motors | Product range drylin E | Motors | Product range drylin
®
®
motors motors
DC motors with spur gear and protective housing DC motors with planetary gearbox and protective housing

● Compatible with the most common motor controls ● Compatible with the most common motor controls
● Available in several installation sizes ● Available in several installation sizes
● Rated torque up to 1.5Nm ● Rated torque up to 1.8Nm
● Protection class: IP41 ● Protection class: IP41

L1 L1 L1 L2 L2 L2 L6 L6 L6 L1 L1 L1 L2 L2 L2 L6 L6 L6
L3 L3 L3 L3 L3 L3
L5 L5 L5 L5 L5L5
B2 B2 B2 B1 B1
B1
B1 B1 B1 B2 B2 B2
D2 D1 D2 D1 D2 D1 B3 B3 B3
D2 D1 D2 D2 D1 D1
D2 D2
D2
D3
D4 D3 D4 D3 D3 D4 D3 D4D4 D3
D4

Technical data Technical data

Part No. Distance Connection Nominal Rated torque Start up Weight Part No. Distance Connection Nominal Rated torque Start up Weight
over hubs current torque over hubs current torque
[mm] [A] [Nm] [Nm] [kg] [mm] [A] [Nm] [Nm] [kg]
MOT-DC-37-M-A-A 37 Metric 0.5 0.1 0.3 0.28 MOT-DC-36-M-A-D 36 Metric 0.9 0.5 1.0 0.42
MOT-DC-37-M-A-B 37 Metric 0.5 0.3 0.5 0.28 MOT-DC-42-M-A-D 42 Metric 2.3 1.0 3.0 0.58
MOT-DC-37-M-A-D 37 Metric 0.5 0.7 1.0 0.28 MOT-DC-42-M-A-F 42 Metric 2.0 1.8 6.0 0.58
MOT-DC-37-M-A-H 37 Metric 0.5 1.5 1.8 0.28

Dimensions [mm] Dimensions [mm]
Part No. L1 L2 L6 D1 D2 B1 B2 Part No. L1 L2 L6 D1 D2 B1 B2
±1.0 -0.013 ±0.025 ±0.3 ±0.2 ±1.0 -0.013 ±0.025 ±0.3 ±0.2
MOT-DC-37-M-A-A 21 100 13 6.0 12.0 42.0 31.0 MOT-DC-36-M-A-D 19.3 126 13 6.0 20.0 41.0 26
MOT-DC-37-M-A-B 21 100 13 6.0 12.0 42.0 31.0 MOT-DC-42-M-A-D 22.0 146 13 8.0 25.0 47.3 35
MOT-DC-37-M-A-D 21 100 13 6.0 12.0 42.0 31.0 MOT-DC-42-M-A-F 22.0 146 13 8.0 25.0 47.3 35
MOT-DC-37-M-A-H 21 100 13 6.0 12.0 42.0 31.0

Further technical data, downloads and ordering Further technical data, downloads and ordering
options at u www.igus-asean.com/motors ASEAN 09/2023 ASEAN 09/2023 options at u www.igus-asean.com/motors
