drylin drylin E | Motors | Product range drylin E | Motors | Product range drylin
®
®
®
®
motors motors

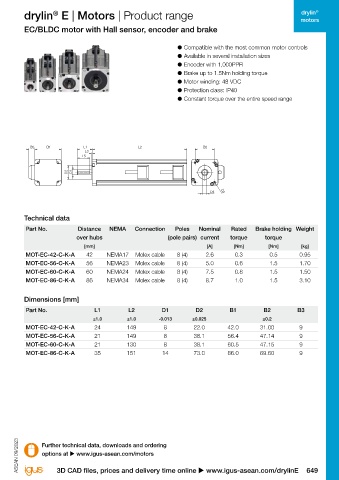

EC/BLDC motors with Hall sensor and encoder EC/BLDC motor with Hall sensor, encoder and brake
● Compatible with the most common motor controls ● Compatible with the most common motor controls
● Available in several installation sizes ● Available in several installation sizes
● Encoder with 1,000PPR ● Encoder with 1,000PPR
● Motor winding: 48 VDC ● Brake up to 1.5Nm holding torque
● Protection class: IP40 ● Motor winding: 48 VDC
● Constant torque over the entire speed range ● Protection class: IP40
● Constant torque over the entire speed range

B3 B3 B1 B3 B1 B1 L1 L1 L1 L2 L2 L2 B2 B2 B2 B3 B3 B1 B3 B1 B1 L1 L1 L1 L2 L2 L2 B2 B2 B2
L3 L3 L3 L3 L3 L3
L5 L5 L5 L5 L5 L5

D2 D1 D2 D1 D2 D1 D2 D1 D2 D1 D2 D1

D4 D3 D4 D4 D3 D3 D4 D3 D4 D4 D3 D3

Technical data Technical data
Part No. Distance NEMA Connection Poles Nominal Rated Weight Part No. Distance NEMA Connection Poles Nominal Rated Brake holding Weight
over hubs (pole pairs) current torque over hubs (pole pairs) current torque torque
[mm] [A] [Nm] [kg] [mm] [A] [Nm] [Nm] [kg]
MOT-EC-42-C-I-A 42 NEMA17 Molex cable 8 (4) 2.6 0.3 0.8 MOT-EC-42-C-K-A 42 NEMA17 Molex cable 8 (4) 2.6 0.3 0.5 0.95
MOT-EC-56-C-I-A 56 NEMA23 Molex cable 8 (4) 5.0 0.6 1.4 MOT-EC-56-C-K-A 56 NEMA23 Molex cable 8 (4) 5.0 0.6 1.5 1.70
MOT-EC-60-C-I-A 60 NEMA24 Molex cable 8 (4) 7.5 0.8 1.4 MOT-EC-60-C-K-A 60 NEMA24 Molex cable 8 (4) 7.5 0.8 1.5 1.50
MOT-EC-86-C-I-A 86 NEMA34 Molex cable 8 (4) 8.7 1.0 2.5 MOT-EC-86-C-K-A 86 NEMA34 Molex cable 8 (4) 8.7 1.0 1.5 3.10

Dimensions [mm] Dimensions [mm]
Part No. L1 L2 D1 D2 B1 B2 B3 Part No. L1 L2 D1 D2 B1 B2 B3
±1.0 ±1.0 -0.013 ±0.025 ±0.2 ±1.0 ±1.0 -0.013 ±0.025 ±0.2
MOT-EC-42-C-I-A 24 115.0 8 22.0 42.0 31.00 9 MOT-EC-42-C-K-A 24 149 8 22.0 42.0 31.00 9
MOT-EC-56-C-I-A 21 115.0 8 38.1 56.4 47.14 9 MOT-EC-56-C-K-A 21 149 8 38.1 56.4 47.14 9
MOT-EC-60-C-I-A 21 97.0 8 38.1 60.5 47.15 9 MOT-EC-60-C-K-A 21 130 8 38.1 60.5 47.15 9
MOT-EC-86-C-I-A 35 110.5 14 73.0 86.0 69.60 9 MOT-EC-86-C-K-A 35 151 14 73.0 86.0 69.60 9

Further technical data, downloads and ordering Further technical data, downloads and ordering
options at u www.igus-asean.com/motors ASEAN 09/2023 ASEAN 09/2023 options at u www.igus-asean.com/motors

648 Online tools and more information u www.igus-asean.com/drylinE 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinE 649
