        drylin       drylin  E | Motors | Product range                                                                          drylin  E | Motors | Product range                                                               drylin
             ®
                                                                                                                                                                                                                                       ®
        motors                                                                                                                                                                                                                    motors

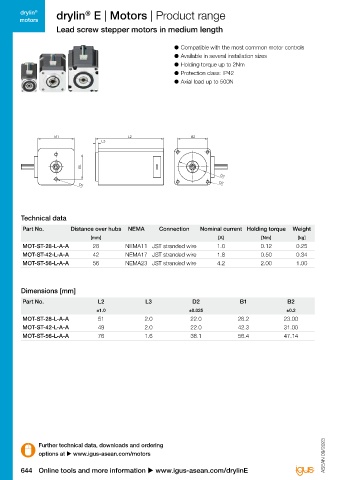

                     Lead screw stepper motors in medium length                                                                  Lead screw stepper motors with encoder in medium length
                                                              ● 	Compatible with the most common motor controls                                                                       ● 	Compatible with the most common motor controls
                                                              ● 	Available in several installation sizes                                                                              ● 	Available in several installation sizes
                                                              ● 	Holding torque up to 2Nm                                                                                             ● 	Holding torque up to 2Nm
                                                              ● 	Protection class: IP42                                                                                               ● 	Protection class: IP42
                                                              ● 	Axial load up to 500N                                                                                                ● 	Axial load up to 500N
                                                                                                                                                                                      ● 	Encoder with 500PPR









             B1   B1  B1                 L2   L2  L2                B2   B2  B2
                               L3    L3  L3                                                                                            B5 B B55      L3  L L33   L2  L L22    L6  L L66    B1 B B11  B3 B B33
                                                                                                                                                                                           B2 B B22


                      B4   B4  B4                                                                                                                 B6  B6  B6
                                                                              D2    D2  D2
                                                                              D3   D3  D3
                     D5   D5  D5                                                                                                                                                                D2  D2 D3  D3
                                                                                                                                                                                                 D2
                                                                                                                                                                                                    D3


        Technical data                                                                                                           Technical data
         Part No.         Distance over hubs  NEMA       Connection    Nominal current Holding torque   Weight                   Part No.         Distance over hubs  NEMA       Connection    Nominal current Holding torque   Weight

                                 [mm]                                         [A]            [Nm]         [kg]                                           [mm]                                         [A]            [Nm]         [kg]
         MOT-ST-28-L-A-A          28         NEMA11 JST stranded wire        1.0             0.12        0.25                    MOT-ST-28-L-C-A          28         NEMA11 JST stranded wire        1.0             0.12        0.27
         MOT-ST-42-L-A-A          42         NEMA17 JST stranded wire        1.8             0.50        0.34                    MOT-ST-42-L-C-A          42         NEMA17 JST stranded wire        1.8             0.50        0.36
         MOT-ST-56-L-A-A          56         NEMA23 JST stranded wire        4.2             2.00        1.00                    MOT-ST-56-L-C-A          56         NEMA23 JST stranded wire        4.2             2.00        1.02




        Dimensions [mm]                                                                                                          Dimensions [mm]
         Part No.                  L2               L3               D2              B1               B2                         Part No.                L2          L3          L6          D2          B1          B2          B3
                                   ±1.0                            ±0.025                             ±0.2                                               ±1.0                                                       ±0.2        ±0.2
         MOT-ST-28-L-A-A           51               2.0             22.0             28.2            23.00                       MOT-ST-28-L-C-A         51          2.0        15.2        22.0        28.2       23.00        12.5
         MOT-ST-42-L-A-A           49               2.0             22.0             42.3            31.00                       MOT-ST-42-L-C-A         49          2.0        16.0        22.0        42.3       31.00        6.0
         MOT-ST-56-L-A-A           76               1.6             38.1             56.4            47.14                       MOT-ST-56-L-C-A         76          1.6        16.0        38.1        56.4       47.14         –






















               Further technical data, downloads and ordering                                                                          Further technical data, downloads and ordering
               options at u www.igus-asean.com/motors                                                              ASEAN 09/2023  ASEAN 09/2023  options at u www.igus-asean.com/motors

        644 Online tools and more information u www.igus-asean.com/drylinE                                                                  3D CAD files, prices and delivery time online u www.igus-asean.com/drylinE              645
