drylin drylin E | Motors | Product range drylin E | Motors | Product range drylin
®
®
motors motors

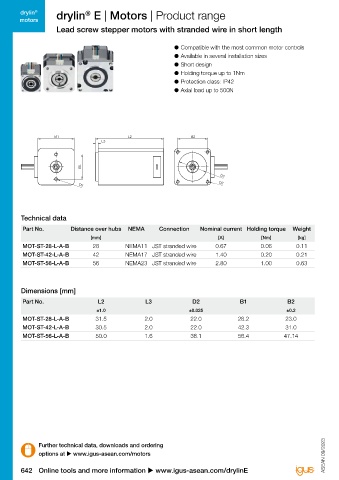

Lead screw stepper motors with stranded wire in short length Lead screw stepper motors with encoder in short length
● Compatible with the most common motor controls ● Compatible with the most common motor controls
● Available in several installation sizes ● Available in several installation sizes
● Short design ● Short design
● Holding torque up to 1Nm ● Holding torque up to 1Nm
● Protection class: IP42 ● Protection class: IP42
● Axial load up to 500N ● Axial load up to 500N
● Encoder with 500PPR

B1 B1 B1 L2 L2 L2 B2 B2 B2
L3 L3 L3 B5 B B55 L3 L L33 L2 L L22 L6 L L66 B1 B B11 B3 B B33
B2 B B22

B4 B4 B4 B6 B6 B6
D2 D2 D2
D3 D3 D3
D5 D5 D5 D2 D2 D3 D3
D3
D2

Technical data Technical data
Part No. Distance over hubs NEMA Connection Nominal current Holding torque Weight Part No. Distance over hubs NEMA Connection Nominal current Holding torque Weight

[mm] [A] [Nm] [kg] [mm] [A] [Nm] [kg]
MOT-ST-28-L-A-B 28 NEMA11 JST stranded wire 0.67 0.06 0.11 MOT-ST-28-L-C-B 28 NEMA11 JST stranded wire 0.67 0.06 0.13
MOT-ST-42-L-A-B 42 NEMA17 JST stranded wire 1.40 0.20 0.21 MOT-ST-42-L-C-B 42 NEMA17 JST stranded wire 1.40 0.20 0.23
MOT-ST-56-L-A-B 56 NEMA23 JST stranded wire 2.80 1.00 0.63 MOT-ST-56-L-C-B 56 NEMA23 JST stranded wire 2.80 1.00 0.65

Dimensions [mm] Dimensions [mm]
Part No. L2 L3 D2 B1 B2 Part No. L2 L3 L6 D2 B1 B2 B3
±1.0 ±0.025 ±0.2 ±1.0 ±0.2 ±0.2
MOT-ST-28-L-A-B 31.5 2.0 22.0 28.2 23.0 MOT-ST-28-L-C-B 31.5 2.0 15.7 22.0 28.2 23.00 12.5
MOT-ST-42-L-A-B 30.5 2.0 22.0 42.3 31.0 MOT-ST-42-L-C-B 30.5 2.0 15.7 22.0 42.3 31.00 6.0
MOT-ST-56-L-A-B 50.0 1.6 38.1 56.4 47.14 MOT-ST-56-L-C-B 50.0 1.6 15.7 38.1 56.4 47.14 –

Further technical data, downloads and ordering Further technical data, downloads and ordering
options at u www.igus-asean.com/motors ASEAN 09/2023 ASEAN 09/2023 options at u www.igus-asean.com/motors

642 Online tools and more information u www.igus-asean.com/drylinE 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinE 643
