 drylin     drylin  E | Motors | Product range  drylin  E | Motors | Product range                         drylin
 ®
                                                                                                                ®
 motors                                                                                                    motors

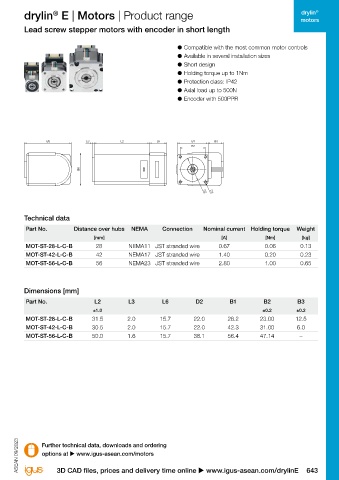

 Lead screw stepper motors with stranded wire in short length  Lead screw stepper motors with encoder in short length
 ● 	Compatible with the most common motor controls             ● 	Compatible with the most common motor controls
 ● 	Available in several installation sizes                    ● 	Available in several installation sizes
 ● 	Short design                                               ● 	Short design
 ● 	Holding torque up to 1Nm                                   ● 	Holding torque up to 1Nm
 ● 	Protection class: IP42                                     ● 	Protection class: IP42
 ● 	Axial load up to 500N                                      ● 	Axial load up to 500N
                                                               ● 	Encoder with 500PPR







 B1  B1  B1  L2  L2  L2  B2  B2  B2
 L3  L3  L3     B5 B B55      L3 L L33    L2  L L22    L6 L L66     B1 B B11  B3 B B33
                                                                    B2  B B22


 B4  B4  B4                B6  B6  B6
 D2  D2  D2
 D3  D3  D3
 D5  D5  D5                                                             D2  D2 D3  D3
                                                                             D3
                                                                          D2


 Technical data  Technical data
 Part No.  Distance over hubs  NEMA  Connection  Nominal current Holding torque  Weight  Part No.  Distance over hubs  NEMA  Connection  Nominal current Holding torque  Weight

 [mm]  [A]  [Nm]  [kg]            [mm]                                         [A]            [Nm]         [kg]
 MOT-ST-28-L-A-B  28  NEMA11 JST stranded wire  0.67  0.06  0.11  MOT-ST-28-L-C-B  28  NEMA11 JST stranded wire  0.67  0.06  0.13
 MOT-ST-42-L-A-B  42  NEMA17 JST stranded wire  1.40  0.20  0.21  MOT-ST-42-L-C-B  42  NEMA17 JST stranded wire  1.40  0.20  0.23
 MOT-ST-56-L-A-B  56  NEMA23 JST stranded wire  2.80  1.00  0.63  MOT-ST-56-L-C-B  56  NEMA23 JST stranded wire  2.80  1.00  0.65




 Dimensions [mm]  Dimensions [mm]
 Part No.  L2  L3  D2  B1  B2  Part No.  L2   L3          L6          D2          B1          B2         B3
 ±1.0  ±0.025  ±0.2               ±1.0                                                       ±0.2        ±0.2
 MOT-ST-28-L-A-B  31.5  2.0  22.0  28.2  23.0  MOT-ST-28-L-C-B  31.5  2.0  15.7  22.0  28.2  23.00       12.5
 MOT-ST-42-L-A-B  30.5  2.0  22.0  42.3  31.0  MOT-ST-42-L-C-B  30.5  2.0  15.7  22.0  42.3  31.00       6.0
 MOT-ST-56-L-A-B  50.0  1.6  38.1  56.4  47.14  MOT-ST-56-L-C-B  50.0  1.6  15.7  38.1  56.4  47.14       –






















 Further technical data, downloads and ordering   Further technical data, downloads and ordering
 options at u www.igus-asean.com/motors  ASEAN 09/2023  ASEAN 09/2023  options at u www.igus-asean.com/motors

 642 Online tools and more information u www.igus-asean.com/drylinE      3D CAD files, prices and delivery time online u www.igus-asean.com/drylinE  643
