drylin drylin E | Motors | Characteristic curves drylin E | Motors | Product range drylin
®
®
®
motors motors

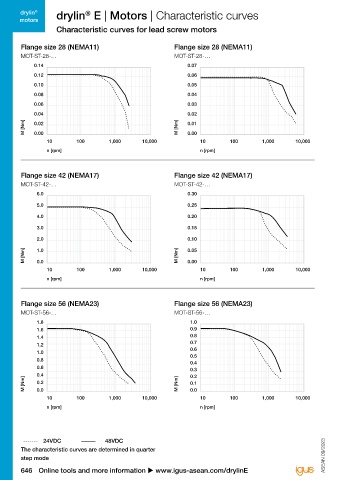

Characteristic curves for lead screw motors EC/BLDC motors with Hall sensor
Flange size 28 (NEMA11) Flange size 28 (NEMA11) ● Compatible with the most common motor controls

MOT-ST-28-… MOT-ST-28-… ● Available in several installation sizes
0.14 0.07 ● Motor winding: 48 VDC
0.12 0.06 ● Protection class: IP40
● Constant torque over the entire speed range
0.10 0.05
0.08 0.04
0.06 0.03
0.04 0.02
M [Nm] 0.02 M [Nm] 0.01

0.00
0.00
L4
10 100 1,000 10,000 10 100 1,000 10,000 B3 B3B1 B3 B1 B1 L1 L1 L4 L1 L4 L2 L2 L2 B2 B2 B2
L3
L3
L3
L5 L5 L5
n [rpm] n [rpm]
D2 D1 D2 D1 D2 D1
Flange size 42 (NEMA17) Flange size 42 (NEMA17)
MOT-ST-42-… MOT-ST-42-…
D4 D3 D4 D4 D3
D3
6.0 0.30
5.0 0.25

4.0 0.20 Technical data
3.0 0.15 Part No. Distance NEMA Connection Poles Nominal Rated Weight

2.0 0.10 over hubs (pole pairs) current torque
[mm] [A] [Nm] [kg]
1.0
0.05
M [Nm] 0.0 M [Nm] 0.00 MOT-EC-42-C-H-A 42 NEMA17 Molex cable 8 (4) 2.6 0.3 0.75
0.6
8 (4)
5.0
1.30
MOT-EC-56-C-H-A
NEMA23
Molex cable
56
10 100 1,000 10,000 10 100 1,000 10,000 MOT-EC-60-C-H-A 60 NEMA24 Molex cable 8 (4) 7.5 0.8 1.35
n [rpm] n [rpm] MOT-EC-86-C-H-A 86 NEMA34 Molex cable 8 (4) 8.7 1.0 2.30
Dimensions [mm]
Flange size 56 (NEMA23) Flange size 56 (NEMA23)
MOT-ST-56-… MOT-ST-56-… Part No. L1 L2 D1 D2 B1 B2 B3
±1.0 ±1.0 -0.013 ±0.025 ±0.2
1.8 1.0
1.6 0.9 MOT-EC-42-C-H-A 24 99.0 8 22.0 42.0 31.00 9
1.4 0.8 MOT-EC-56-C-H-A 21 98.0 8 38.1 56.4 47.14 9
1.2 0.7 MOT-EC-60-C-H-A 21 87.7 8 38.1 60.5 47.15 9
0.6
1.0 0.5 MOT-EC-86-C-H-A 35 80.5 14 73.0 86.0 69.60 9
0.8 0.4
0.6 0.3
0.4 0.2
M [Nm] 0.2 M [Nm] 0.1
0.0
0.0
10 100 1,000 10,000 10 100 1,000 10,000
n [rpm] n [rpm]

------- 24VDC 48VDC Further technical data, downloads and ordering
The characteristic curves are determined in quarter options at u www.igus-asean.com/motors
step mode ASEAN 09/2023 ASEAN 09/2023
646 Online tools and more information u www.igus-asean.com/drylinE 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinE 647
