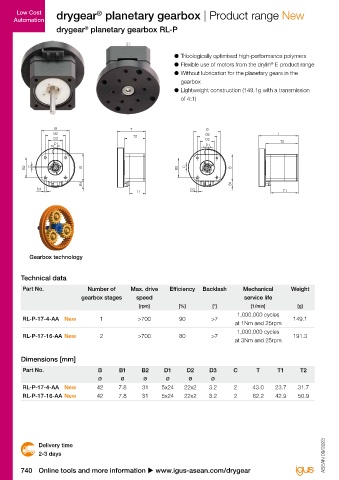

Low Cost drygear planetary gearbox | Product range New Notes
®
Automation
drygear planetary gearbox RL-P
®

● Tribologically optimised high-performance polymers
● Flexible use of motors from the drylin E product range
®
● Without lubrication for the planetary gears in the
gearbox
● Lightweight construction (149.1g with a transmission
of 4:1)

B B T T B B
B2 B2 B2 B2 T T
D2 D2 T2 T2 D2 D2
D1 D1 D1 D1 T2 T2

B2 C B2 C B B B2 C B2 C B B

B1 B1 B1 B1
D3 D3 D3 D3 T1 T1
T1 T1

Gearbox technology

Technical data
Part No. Number of Max. drive Efficiency Backlash Mechanical Weight
gearbox stages speed service life
[rpm] [%] [°] [1/min] [g]
1,000,000 cycles
RL-P-17-4-AA New 1 >700 90 >7 149.1
at 1Nm and 25rpm
1,000,000 cycles
RL-P-17-16-AA New 2 >700 80 >7 191.3
at 3Nm and 25rpm

Dimensions [mm]
Part No. B B1 B2 D1 D2 D3 C T T1 T2
Ø Ø Ø Ø Ø Ø
RL-P-17-4-AA New 42 7.8 31 5x24 22x2 3.2 2 43.0 23.7 31.7
RL-P-17-16-AA New 42 7.8 31 5x24 22x2 3.2 2 62.2 42.9 50.9
