drylin W drylin W
®
®
®
®
profile drylin W profile guides | Product range drylin W profile guides | Product range New profile
guides guides

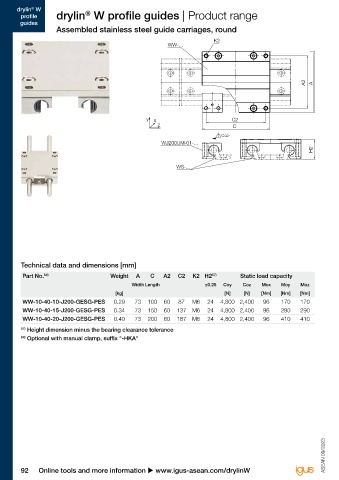

Assembled stainless steel guide carriages, round Mono-slide carriages, anodised aluminium, with locking mechanism
K2
WW-...
K2
WW-... Order key
Type Size

A2 A
A2 A

C2
y x C2 C
z C Locking mechanism
! Coz- Mono-slide guide carriage Shafts Ø [mm] Profile width Carriage length
WJ200UM-01-... ! Coz-
WJ200UM-01-... H2
H2
WS-...
WWC-06-30-06-LM
WS-... WSQ-06-30 K2

A2 A

C2 H2
C

Technical data and dimensions [mm] Technical data and dimensions [mm]

Part No. 64) Weight A C A2 C2 K2 H2 57) Static load capacity Part No. Weight A C A2 C2 K2 H2 57) Static load capacity
Width Length ±0.25 Coy Coz Mox Moy Moz Width Length max. ±0.6 ±0.2 Coy Coz Mox Moy Moz
[kg] [N] [N] [Nm] [Nm] [Nm] [kg] ±0.25 -0.1 [N] [N] [Nm] [Nm] [Nm]
WW-10-40-10-J200-GESG-PES 0.29 73 100 60 87 M6 24 4,800 2,400 96 170 170 WWC-06-30-06-LM New 0.07 54 60 45 51 M4 16 1,680 840 25 34 34
WW-10-40-15-J200-GESG-PES 0.34 73 150 60 137 M6 24 4,800 2,400 96 290 290 57) Height dimension minus the bearing clearance tolerance
WW-10-40-20-J200-GESG-PES 0.40 73 200 60 187 M6 24 4,800 2,400 96 410 410

57) Height dimension minus the bearing clearance tolerance
64) Optional with manual clamp, suffix "-HKA"

ASEAN 09/2023 ASEAN 09/2023
