drylin W drylin W
®
®
®
®
profile drylin W profile guides | Product range drylin W profile guides | Product range profile
guides guides

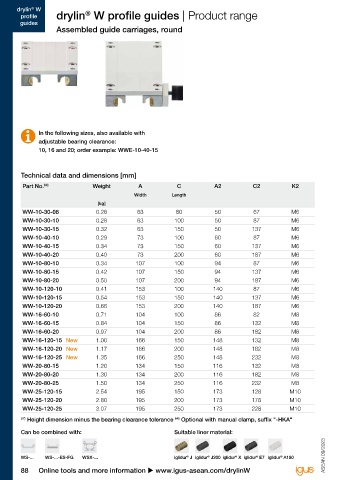

Assembled guide carriages, round
WW-... K2
K2
WW-... Order key
Type

A2 A
A2 A

C2
y x C2 C
z C
! Coz- Profile rail, round Rail width [mm]
In the following sizes, also available with
WJ200UM-01-... ! Coz-
adjustable bearing clearance: WJ200UM-01-... H2 Shaft Ø Length
10, 16 and 20; order example: WWE-10-40-15 H2
WS-...
WS-...
Technical data and dimensions [mm]
Part No. 64) Weight A C A2 C2 K2 H2 57) Static load capacity
Width Length ±0.25 Coy Coz Mox Moy Moz
[kg] [N] [N] [Nm] [Nm] [Nm]
WW-10-30-08 0.26 63 80 50 67 M6 24 4,800 2,400 72 120 120
WW-10-30-10 0.28 63 100 50 87 M6 24 4,800 2,400 72 170 170
WW-10-30-15 0.32 63 150 50 137 M6 24 4,800 2,400 72 290 290
WW-10-40-10 0.29 73 100 60 87 M6 24 4,800 2,400 96 170 170
WW-10-40-15 0.34 73 150 60 137 M6 24 4,800 2,400 96 290 290
WW-10-40-20 0.40 73 200 60 187 M6 24 4,800 2,400 96 410 410
WW-10-80-10 0.34 107 100 94 87 M6 24 4,800 2,400 178 170 170
WW-10-80-15 0.42 107 150 94 137 M6 24 4,800 2,400 178 290 290
WW-10-80-20 0.50 107 200 94 187 M6 24 4,800 2,400 178 410 410
WW-10-120-10 0.41 153 100 140 87 M6 24 4,800 2,400 288 170 170
WW-10-120-15 0.54 153 150 140 137 M6 24 4,800 2,400 288 290 290
WW-10-120-20 0.66 153 200 140 187 M6 24 4,800 2,400 288 410 410
WW-16-60-10 0.71 104 100 86 82 M8 35 8,400 4,200 240 270 270
WW-16-60-15 0.84 104 150 86 132 M8 35 8,400 4,200 240 480 480
WW-16-60-20 0.97 104 200 86 182 M8 35 8,400 4,200 240 690 690
WW-16-120-15 New 1.00 166 150 148 132 M8 35 8,400 4,200 504 480 480
WW-16-120-20 New 1.17 166 200 148 182 M8 35 8,400 4,200 504 690 690
WW-16-120-25 New 1.35 166 250 148 232 M8 35 8,400 4,200 504 900 900
WW-20-80-15 1.20 134 150 116 132 M8 44 12,800 6,400 525 670 670
WW-20-80-20 1.30 134 200 116 182 M8 44 12,800 6,400 525 990 990
WW-20-80-25 1.50 134 250 116 232 M8 44 12,800 6,400 525 1,250 1,250
WW-25-120-15 2.54 195 150 173 128 M10 55 19,200 9,600 1,250 880 880
WW-25-120-20 2.80 195 200 173 178 M10 55 19,200 9,600 1,250 1,360 1,360
WW-25-120-25 3.07 195 250 173 228 M10 55 19,200 9,600 1,250 1,840 1,840
57) Height dimension minus the bearing clearance tolerance Optional with manual clamp, suffix "-HKA"
64)
Can be combined with: Suitable liner material:
ASEAN 09/2023 ASEAN 09/2023

WS-... WS-...-ES-FG WSX-... iglidur J iglidur J200 iglidur X iglidur E7 iglidur A180
®
®
®
®
®
