CF31 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF31
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
7.5 x d ® Oil resistance none 1 2 3 4 highest 7.5 x d
Motor cable | PVC | chainflex CF31 Class 5.5.2.1 Torsion none 1 2 3 4 ±360°

Strip cables 50% faster with CFRIP tear strip
®

Example image

Number of cores and conductor Outer diameter Copper
Part No. Weight
nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
CF31.15.04 (4G1.5)C 10.0 89 157
CF31.25.04 (4G2.5)C 11.5 133 221
CF31.25.05 (5G2.5)C 13.0 163 271
CF31.40.04 (4G4.0)C 13.0 203 300
CF31.40.05 (5G4.0)C 14.5 258 354
CF31.60.04 (4G6.0)C 16.0 288 455
CF31.60.05 (5G6.0)C 17.0 356 532
CF31.100.04 (4G10)C 18.5 468 670
CF31.100.05 (5G10)C 21.5 609 857
CF31.160.04 (4G16)C 23.0 738 1035
CF31.250.04 (4G25)C 27.5 1153 1586
CF31.350.04 (4G35)C 31.0 1592 2104
CF31.500.04 (4G50)C 36.5 2224 2902
CF31.700.04 (4G70)C 43.0 3203 4173
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

Order example: CF31.15.04 – to your desired length (0.5m steps)
CF31 chainflex series .15 Code nominal cross section .04 Number of cores
®
Order online  www.igus-asean.com/CF31

Delivery time 24hrs or today.

Delivery time means time until goods are shipped.
®

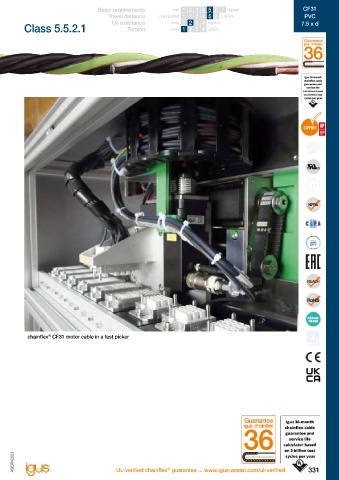

chainflex CF31 motor cable in a fast picker

®
Cables available in the chainflex CASE
Simple savings on delivery, storage space and re-ordering with
®
the chainflex CASE - ship'n store by igus .
®
More on this on page 24/25 and online: www.igus-asean.com/cf-case

EPLAN download, configurators  www.igus-asean.com/CF31
