CF30 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF30
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
7.5 x d ® Oil resistance none 1 2 3 4 highest 7.5 x d

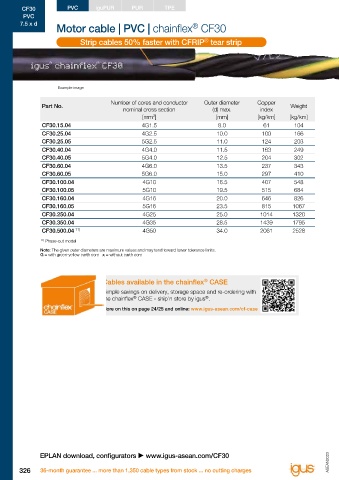

Motor cable | PVC | chainflex CF30 Class 5.5.2.2 Torsion none 1 2 3 4 ±360°

®
Strip cables 50% faster with CFRIP tear strip

Example image

Number of cores and conductor Outer diameter Copper Order example: CF30.15.04 – to your desired length (0.5m steps)
Part No. Weight
nominal cross section (d) max. index CF30 chainflex series .15 Code nominal cross section .04 Number of cores
®
[mm²] [mm] [kg/km] [kg/km]
CF30.15.04 4G1.5 8.0 61 104 Order online  www.igus-asean.com/CF30
CF30.25.04 4G2.5 10.0 100 166
CF30.25.05 5G2.5 11.0 124 203 Delivery time 24hrs or today.
CF30.40.04 4G4.0 11.5 163 249 Delivery time means time until goods are shipped.
CF30.40.05 5G4.0 12.5 204 302
CF30.60.04 4G6.0 13.5 237 343
CF30.60.05 5G6.0 15.0 297 410
CF30.100.04 4G10 16.5 407 548
CF30.100.05 5G10 19.5 515 684
CF30.160.04 4G16 20.0 646 826 Reduce cost, improve technology, now!
®
Do the chainflex price check ...
CF30.160.05 5G16 23.5 815 1067 www.igus-asean.com/cf-price-check
CF30.250.04 4G25 25.0 1014 1320
CF30.350.04 4G35 28.5 1439 1795 … for example: reduce cost with CF885 ...
CF30.500.04 11) 4G50 34.0 2061 2528
11) Phase-out model
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

®
Cables available in the chainflex CASE
Simple savings on delivery, storage space and re-ordering with
®
the chainflex CASE - ship'n store by igus .
®
More on this on page 24/25 and online: www.igus-asean.com/cf-case

EPLAN download, configurators  www.igus-asean.com/CF30
