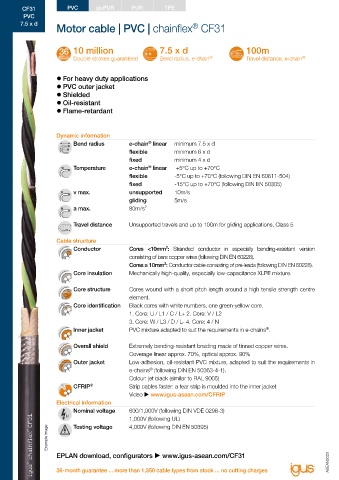

Page 334 - ASEAN Chainflex Catalogue 2023

CF31 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF31
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
7.5 x d ® Oil resistance none 1 2 3 4 highest 7.5 x d
Motor cable | PVC | chainflex CF31 Class 5.5.2.1 Torsion none 1 2 3 4 ±360°

10 million 7.5 x d 100m Properties and approvals Medium
UV resistance
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®

Oil resistance Oil-resistant (following DIN EN 50363-4-1), Class 2
z For heavy duty applications
z PVC outer jacket Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
z Shielded
z Oil-resistant Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
z Flame-retardant 1992)
UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
service life calculator based on 2 billion test cycles per year"
Dynamic information UL/CSA AWM See data sheet for details  www.igus-asean.com/CF31
®
Bend radius e-chain linear minimum 7.5 x d
flexible minimum 6 x d NFPA Following NFPA 79-2018, chapter 12.9
fixed minimum 4 x d
Temperature e-chain linear +5°C up to +70°C EAC Certificate No. RU C-DE.ME77.B.00863/20
®
flexible -5°C up to +70°C (following DIN EN 60811-504)
fixed -15°C up to +70°C (following DIN EN 50305) REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
v max. unsupported 10m/s
gliding 5m/s Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
a max. 80m/s²
Cleanroom According to ISO Class 2. The outer jacket material of this series complies with
Travel distance Unsupported travels and up to 100m for gliding applications, Class 5 CF5.10.07 - tested by IPA according to standard DIN EN ISO 14644-1
CE Following 2014/35/EU
Cable structure
Conductor Cores <10mm²: Stranded conductor in especially bending-resistant version UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
consisting of bare copper wires (following DIN EN 60228).
Cores ≥ 10mm²: Conductor cable consisting of pre-leads (following DIN EN 60228).
Core insulation Mechanically high-quality, especially low-capacitance XLPE mixture. Guaranteed service life (details see page 28-29)

Double strokes* 5 million 7.5 million 10 million
Core structure Cores wound with a short pitch length around a high tensile strength centre Temperature, R min. R min. R min.
element. from/to [°C] [factor x d] [factor x d] [factor x d]
Core identification Black cores with white numbers, one green-yellow core. +5/+15 10 11 12
1. Core: U / L1 / C / L+ 2. Core: V / L2 +15/+60 7.5 8.5 9.5
3. Core: W / L3 / D / L- 4. Core: 4 / N +60/+70 10 11 12
®
Inner jacket PVC mixture adapted to suit the requirements in e-chains . * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife

Overall shield Extremely bending-resistant braiding made of tinned copper wires. Typical application areas
Coverage linear approx. 70%, optical approx. 90% z For heavy-duty applications, Class 5
Outer jacket Low-adhesion, oil-resistant PVC mixture, adapted to suit the requirements in z Unsupported travels and up to 100m for gliding applications, Class 5
e-chains (following DIN EN 50363-4-1). z Light oil influence, Class 2
®
Colour: jet black (similar to RAL 9005) z No torsion, Class 1
CFRIP ® Strip cables faster: a tear strip is moulded into the inner jacket z Preferably indoor applications, but also outdoor ones at temperatures > 5 °C
Video  www.igus-asean.com/CFRIP z Storage and retrieval units, machining units/packaging machines, quick handling, indoor cranes
Electrical information
Nominal voltage 600/1,000V (following DIN VDE 0298-3)
1,000V (following UL)
4,000V (following DIN EN 50395)
Example image
Testing voltage
