CF896 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF896
iguPUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m iguPUR
15 x d ® Oil resistance none 1 2 3 4 highest 15 x d

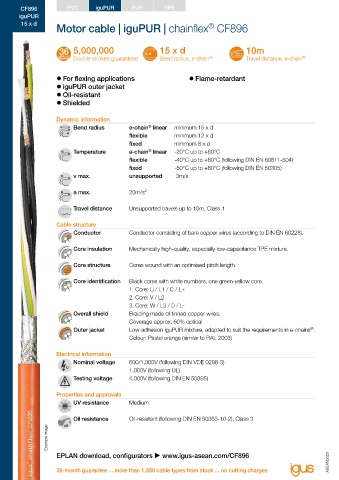

Motor cable | iguPUR | chainflex CF896 Class 3.1.3.1 Torsion none 1 2 3 4 ±360°

5,000,000 15 x d 10m Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®
Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
1992)
z For flexing applications z Flame-retardant UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
z iguPUR outer jacket service life calculator based on 2 billion test cycles per year"
z Oil-resistant UL/CSA AWM See data sheet for details  www.igus-asean.com/CF896
z Shielded
NFPA Following NFPA 79-2018, chapter 12.9
Dynamic information
Bend radius e-chain linear minimum 15 x d EAC Certificate No. RU C-DE.ME77.B.00302/19
®
flexible minimum 12 x d
fixed minimum 8 x d REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
®
Temperature e-chain linear -20°C up to +80°C
flexible -40°C up to +80°C (following DIN EN 60811-504) Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
fixed -50°C up to +80°C (following DIN EN 50305)
v max. unsupported 3m/s CE Following 2014/35/EU

a max. 20m/s² UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)

Travel distance Unsupported travels up to 10m, Class 1
Guaranteed service life (details see page 28-29)
Cable structure Double strokes* 1 million 3 million 5 million

Conductor Conductor consisting of bare copper wires (according to DIN EN 60228). Temperature, R min. R min. R min.
from/to [°C] [factor x d] [factor x d] [factor x d]
Core insulation Mechanically high-quality, especially low-capacitance TPE mixture. -20/-10 17.5 18.5 19.5
-10/+70 15 16 17
Core structure Cores wound with an optimised pitch length. +70/+80 17.5 18.5 19.5
* Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Core identification Black cores with white numbers, one green-yellow core.
1. Core: U / L1 / C / L+ Typical application areas
2. Core: V / L2 z For flexing applications, Class 3
3. Core: W / L3 / D / L- z Especially for unsupported travels, Class 1
Overall shield Braiding made of tinned copper wires. z With influence of oil, Class 3
Coverage approx. 60% optical z No torsion, Class 1
®
Outer jacket Low-adhesion iguPUR mixture, adapted to suit the requirements in e-chains . z Indoor and outdoor applications without direct sun radiation
Colour: Pastel orange (similar to RAL 2003) z Machining units/machine tools, low temperature applications

Electrical information
Nominal voltage 600/1,000V (following DIN VDE 0298-3) Part No. Number of cores and conductor Outer diameter Copper Weight
1,000V (following UL) nominal cross section (d) max. index
Testing voltage 4,000V (following DIN EN 50395) [mm²] [mm] [kg/km] [kg/km]
CF896.07.04 (4G0.75)C 7.5 52 79

Properties and approvals CF896.15.04 (4G1.5)C 9.0 82 122
UV resistance Medium CF896.25.04 (4G2.5)C 10.5 132 173
CF896.40.04 (4G4.0)C 12.0 204 257
Oil resistance Oil-resistant (following DIN EN 50363-10-2), Class 3 CF896.60.04 (4G6.0)C 14.5 306 378
18.5
(4G10)C
458
653
CF896.100.04
Example image Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. 709 835
21.0
CF896.160.04
(4G16)C
EPLAN download, configurators  www.igus-asean.com/CF896 G = with green-yellow earth core x = without earth core
