CF270.UL.D PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF270.UL.D
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
10 x d ® Oil resistance none 1 2 3 4 highest 10 x d
Motor cable | PUR | chainflex CF270.UL.D Class 4.2.3.1 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper
Part No. Weight
nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
CF270.UL.07.04.D (4G0.75)C 8.0 47 81
CF270.UL.10.06.D (6G1.0)C 9.5 87 133
CF270.UL.15.04.D (4G1.5)C 9.0 78 116
CF270.UL.25.04.D (4G2.5)C 10.5 129 173
CF270.UL.40.04.D (4G4.0)C 12.5 193 255
CF270.UL.60.04.D (4G6.0)C 14.5 297 356
CF270.UL.100.04.D (4G10)C 17.0 495 551
CF270.UL.160.04.D (4G16)C 20.5 755 819
CF270.UL.250.04.D (4G25)C 25.0 1117 1256
CF270.UL.350.04.D (4G35)C 28.0 1597 1696
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

Order example: CF270.UL.07.04.D – to your desired length (0.5m steps)
®
CF270.UL.D chainflex series .07 Code nominal cross section .04 Number of cores
Order online  www.igus-asean.com/CF270ULD

Delivery time 24hrs or today.

Delivery time means time until goods are shipped.

Cables available in the chainflex CASE
®
Simple savings on delivery, storage space and re-ordering with
®
®

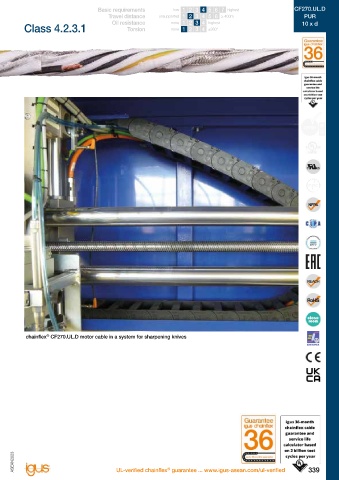

the chainflex CASE - ship'n store by igus . chainflex CF270.UL.D motor cable in a system for sharpening knives
®
More on this on page 24/25 and online: www.igus-asean.com/cf-case

Reduce cost, improve technology, now!
®
Do the chainflex price check ...
www.igus-asean.com/cf-price-check
… for example: reduce cost with CF31 ...

EPLAN download, configurators  www.igus-asean.com/CF270ULD

338 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 339
®
