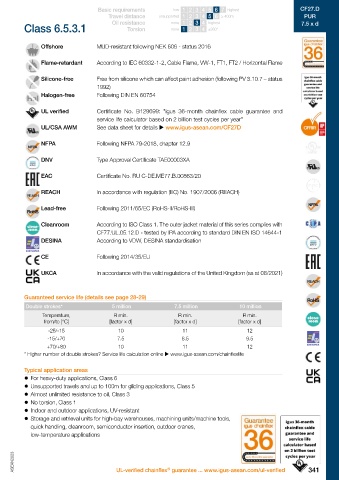

Page 347 - ASEAN Chainflex Catalogue 2023

CF27.D PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF27.D
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
7.5 x d ® Oil resistance none 1 2 3 4 highest 7.5 x d
Motor cable | PUR | chainflex CF27.D Class 6.5.3.1 Torsion none 1 2 3 4 ±360°

10 million 7.5 x d 100m Offshore MUD-resistant following NEK 606 - status 2016
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®
Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame

z For extremely heavy duty applications z Notch-resistant Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
z PUR outer jacket z Flame-retardant 1992)
z Shielded z Hydrolysis and microbe-resistant Halogen-free Following DIN EN 60754
z Oil-resistant and coolant-resistant z PVC and halogen-free
UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
Dynamic information service life calculator based on 2 billion test cycles per year"
Bend radius e-chain linear minimum 7.5 x d UL/CSA AWM See data sheet for details  www.igus-asean.com/CF27D
®
flexible minimum 6 x d
fixed minimum 4 x d NFPA Following NFPA 79-2018, chapter 12.9
®
Temperature e-chain linear -25°C up to +80°C
flexible -40°C up to +80°C (following DIN EN 60811-504) DNV Type Approval Certificate TAE00003XA
fixed -50°C up to +80°C (following DIN EN 50305)
v max. unsupported 10m/s EAC Certificate No. RU C-DE.ME77.B.00863/20
gliding 5m/s
a max. 80m/s² REACH In accordance with regulation (EC) No. 1907/2006 (REACH)

Travel distance Unsupported travels and up to 100m for gliding applications, Class 5 Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)

Cable structure Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
Conductor Stranded conductor in especially bending-resistant version consisting of bare CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1
copper wires (following DIN EN 60228). DESINA According to VDW, DESINA standardisation
Core insulation Mechanically high-quality, especially low-capacitance XLPE mixture.
CE Following 2014/35/EU
Core structure Cores wound around a high tensile strength centre element.
UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
Core identification Black cores with white numbers, one green-yellow core.
1. Core: U / L1 / C / L+
2. Core: V / L2 Guaranteed service life (details see page 28-29)
3. Core: W / L3 / D / L- Double strokes* 5 million 7.5 million 10 million

®
Inner jacket TPE mixture adapted to suit the requirements in e-chains . Temperature, R min. R min. R min.
from/to [°C] [factor x d] [factor x d] [factor x d]
Overall shield Extremely bending-resistant braiding made of tinned copper wires. -25/-15 10 11 12
Coverage linear approx. 70%, optical approx. 90% -15/+70 7.5 8.5 9.5
Outer jacket Low-adhesion, halogen-free, highly abrasion resistant PUR mixture, adapted +70/+80 10 11 12
®
to suit the requirements in e-chains (following DIN EN 50363-10-2) * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Colour: Pastel orange (similar to RAL 2003)
CFRIP ® Strip cables faster: a tear strip is moulded into the inner jacket Typical application areas
Video  www.igus-asean.com/CFRIP z For heavy-duty applications, Class 6
Electrical information z Unsupported travels and up to 100m for gliding applications, Class 5
Nominal voltage 600/1,000V (following DIN VDE 0298-3) z Almost unlimited resistance to oil, Class 3
1,000V (following UL) z No torsion, Class 1
Testing voltage 4,000V (following DIN EN 50395) z Indoor and outdoor applications, UV-resistant
z Storage and retrieval units for high-bay warehouses, machining units/machine tools,
quick handling, cleanroom, semiconductor insertion, outdoor cranes,
Example image UV resistance Medium low-temperature applications
Properties and approvals

Oil-resistant (following DIN EN 50363-10-2), Class 3
Oil resistance
