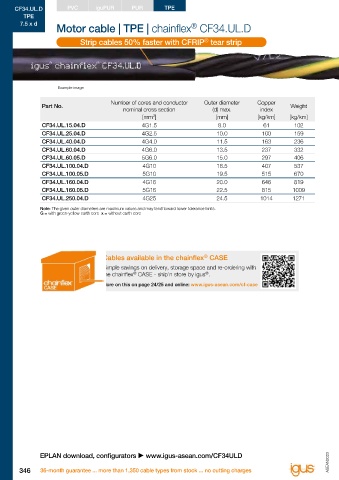

Page 352 - ASEAN Chainflex Catalogue 2023

CF34.UL.D PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF34.UL.D
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
7.5 x d ® Oil resistance none 1 2 3 4 highest 7.5 x d
Motor cable | TPE | chainflex CF34.UL.D Class 6.6.4.2 Torsion none 1 2 3 4 ±360°

®
Strip cables 50% faster with CFRIP tear strip

Example image

Number of cores and conductor Outer diameter Copper Order example: CF34.UL.15.04.D - to your desired length (0.5m steps)
Part No. Weight
nominal cross section (d) max. index CF34.UL.D chainflex series .15 Code nominal cross section .04 Number of cores
®
[mm²] [mm] [kg/km] [kg/km]
CF34.UL.15.04.D 4G1.5 8.0 61 102 Order online  www.igus-asean.com/CF34ULD
CF34.UL.25.04.D 4G2.5 10.0 100 159
CF34.UL.40.04.D 4G4.0 11.5 163 236 Delivery time 24hrs or today.
CF34.UL.60.04.D 4G6.0 13.5 237 332 Delivery time means time until goods are shipped.
CF34.UL.60.05.D 5G6.0 15.0 297 406
CF34.UL.100.04.D 4G10 16.5 407 537
CF34.UL.100.05.D 5G10 19.5 515 670
CF34.UL.160.04.D 4G16 20.0 646 819
CF34.UL.160.05.D 5G16 22.5 815 1009
CF34.UL.250.04.D 4G25 24.5 1014 1271 Reduce cost, improve technology, now!
Do the chainflex price check ...
®
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. www.igus-asean.com/cf-price-check
G = with green-yellow earth core x = without earth core
… for example: reduce cost with CF300.UL.D ...

®
Cables available in the chainflex CASE
Simple savings on delivery, storage space and re-ordering with
®
®
the chainflex CASE - ship'n store by igus .
More on this on page 24/25 and online: www.igus-asean.com/cf-case

EPLAN download, configurators  www.igus-asean.com/CF34ULD

346 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 347
®
