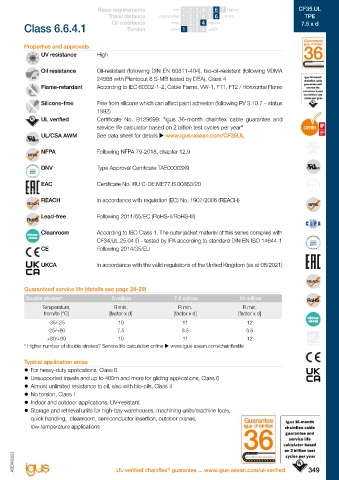

CF35.UL PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF35.UL
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
7.5 x d ® Oil resistance none 1 2 3 4 highest 7.5 x d
Motor cable | TPE | chainflex CF35.UL Class 6.6.4.1 Torsion none 1 2 3 4 ±360°

10 million 7.5 x d 400m Properties and approvals High
UV resistance
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®

Oil resistance Oil-resistant (following DIN EN 60811-404), bio-oil-resistant (following VDMA
z For extremely heavy duty applications z Flame-retardant 24568 with Plantocut 8 S-MB tested by DEA), Class 4
z TPE outer jacket z UV-resistant Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
z Shielded z Hydrolysis and microbe-resistant
z Oil and bio-oil-resistant Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
1992)
UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
Dynamic information service life calculator based on 2 billion test cycles per year"
Bend radius e-chain linear minimum 7.5 x d UL/CSA AWM See data sheet for details  www.igus-asean.com/CF35UL
®
flexible minimum 6 x d
fixed minimum 4 x d NFPA Following NFPA 79-2018, chapter 12.9
®
Temperature e-chain linear -35°C up to +90°C
flexible -45°C up to +90°C (following DIN EN 60811-504) DNV Type Approval Certificate TAE00003X9
fixed -50°C up to +90°C (following DIN EN 50305)
v max. unsupported 10m/s EAC Certificate No. RU C-DE.ME77.B.00863/20
gliding 6m/s
a max. 80m/s² REACH In accordance with regulation (EC) No. 1907/2006 (REACH)

Travel distance Unsupported travels and up to 400m and more for gliding applications, Class 6 Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)

Cable structure Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
Conductor Cores <10mm²: Stranded conductor in especially bending-resistant version CF34.UL.25.04.D - tested by IPA according to standard DIN EN ISO 14644-1
consisting of bare copper wires (following DIN EN 60228). CE Following 2014/35/EU
Cores ≥ 10mm²: Conductor cable consisting of pre-leads (following DIN EN 60228).
Core insulation Mechanically high-quality, especially low-capacitance XLPE mixture. UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)

Core structure Cores wound with a short pitch length around a high tensile strength centre
element. Guaranteed service life (details see page 28-29)
Core identification Black cores with white numbers, one green-yellow core. Double strokes* 5 million 7.5 million 10 million

1. Core: U / L1 / C / L+ 2. Core: V / L2 Temperature, R min. R min. R min.
3. Core: W / L3 / D / L- 4. Core: 4 / N from/to [°C] [factor x d] [factor x d] [factor x d]
®
Inner jacket TPE mixture adapted to suit the requirements in e-chains . -35/-25 10 11 12
-25/+80 7.5 8.5 9.5
Overall shield Extremely bending-resistant braiding made of tinned copper wires. +80/+90 10 11 12
Coverage linear approx. 70%, optical approx. 90% * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Outer jacket Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture,
®
adapted to suit the requirements in e-chains . Typical application areas
Colour: Signal black (similar to RAL 9004) z For heavy-duty applications, Class 6
CFRIP ® Strip cables faster: a tear strip is moulded into the inner jacket z Unsupported travels and up to 400m and more for gliding applications, Class 6
Video  www.igus-asean.com/CFRIP z Almost unlimited resistance to oil, also with bio-oils, Class 4
Electrical information z No torsion, Class 1
Nominal voltage 600/1,000V (following DIN VDE 0298-3) z Indoor and outdoor applications, UV-resistant
1,000V (following UL) z Storage and retrieval units for high-bay warehouses, machining units/machine tools,
Testing voltage 4,000V (following DIN EN 50395) quick handling, cleanroom, semiconductor insertion, outdoor cranes,
low-temperature applications
Example image

EPLAN download, configurators  www.igus-asean.com/CF35UL
