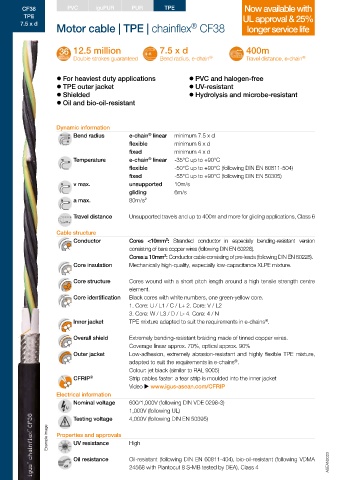

Page 360 - ASEAN Chainflex Catalogue 2023

CF38 PVC iguPUR PUR TPE Now available with Basic requirements low 1 2 3 4 5 6 7 highest CF38
TPE UL approval & 25% Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
7.5 x d ® Oil resistance none 1 2 3 4 highest 7.5 x d
Motor cable | TPE | chainflex CF38 longer service life Class 7.6.4.1 Torsion none 1 2 3 4 ±360°

12.5 million 7.5 x d 400m Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
1992)
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®
Halogen-free Following DIN EN 60754

z For heaviest duty applications z PVC and halogen-free UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
z TPE outer jacket z UV-resistant service life calculator based on 2 billion test cycles per year"
z Shielded z Hydrolysis and microbe-resistant UL AWM See data sheet for details www.igus-asean.com/CF38
z Oil and bio-oil-resistant
EAC Certificate No. RU C-DE.ME77.B.00863/20

Dynamic information REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
®
Bend radius e-chain linear minimum 7.5 x d
flexible minimum 6 x d Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
fixed minimum 4 x d
Temperature e-chain linear -35°C up to +90°C Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
®
flexible -50°C up to +90°C (following DIN EN 60811-504) CF9.15.07 - tested by IPA according to standard DIN EN ISO 14644-1
fixed -55°C up to +90°C (following DIN EN 50305) CE Following 2014/35/EU
v max. unsupported 10m/s
gliding 6m/s UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
a max. 80m/s²

Travel distance Unsupported travels and up to 400m and more for gliding applications, Class 6 Guaranteed service life (details see page 28-29)

Double strokes* 5 million 7.5 million 12.5 million
Cable structure Temperature, R min. R min. R min.
Conductor Cores <10mm²: Stranded conductor in especially bending-resistant version from/to [°C] [factor x d] [factor x d] [factor x d]
consisting of bare copper wires (following DIN EN 60228). -35/-25 10 11 12
Cores ≥ 10mm²: Conductor cable consisting of pre-leads (following DIN EN 60228). -25/+80 7.5 8.5 9.5
Core insulation Mechanically high-quality, especially low-capacitance XLPE mixture. +80/+90 10 11 12
* Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Core structure Cores wound with a short pitch length around a high tensile strength centre
element. Typical application areas
Core identification Black cores with white numbers, one green-yellow core. z For heavy-duty applications, Class 7
1. Core: U / L1 / C / L+ 2. Core: V / L2 z Unsupported travels and up to 400m and more for gliding applications, Class 6
3. Core: W / L3 / D / L- 4. Core: 4 / N z Almost unlimited resistance to oil, also with bio-oils, Class 4
Inner jacket TPE mixture adapted to suit the requirements in e-chains . z No torsion, Class 1
®
z Indoor and outdoor applications, UV-resistant
Overall shield Extremely bending-resistant braiding made of tinned copper wires. z Storage and retrieval units for high-bay warehouses, machining units/machine tools, quick
Coverage linear approx. 70%, optical approx. 90% handling, cleanroom, semiconductor insertion, outdoor cranes, low-temperature applications
Outer jacket Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture,
®
adapted to suit the requirements in e-chains . Part No. Number of cores and conductor Outer diameter Copper Weight
Colour: jet black (similar to RAL 9005) nominal cross section (d) max. index
CFRIP ® Strip cables faster: a tear strip is moulded into the inner jacket [mm²] [mm] [kg/km] [kg/km]
Video  www.igus-asean.com/CFRIP CF38.15.04 (4G1.5)C 10.0 89 140
Electrical information CF38.25.04 (4G2.5)C 11.5 133 198
Nominal voltage 600/1,000V (following DIN VDE 0298-3) CF38.40.04 (4G4.0)C 13.0 203 280
1,000V (following UL) CF38.60.04 (4G6.0)C 16.0 288 409
Testing voltage 4,000V (following DIN EN 50395) CF38.100.04 (4G10)C 18.5 468 613
23.0
(4G16)C
738
CF38.160.04
943
Example image Properties and approvals High CF38.250.04 (4G25)C 27.0 1153 1432
17.0
(3x10)C
358
CF38.100.03.O.PE
494
UV resistance
565
762
(3x50)C
CF38.500.03.O.PE
33.0
Oil resistance Oil-resistant (following DIN EN 60811-404), bio-oil-resistant (following VDMA ASEAN2023 ASEAN2023 CF38.160.03.O.PE (3x16)C 20.5 1714 2129
354 24568 with Plantocut 8 S-MB tested by DEA), Class 4 Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. 355
G = with green-yellow earth core x = without earth core
