CF35.UL PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF35.UL
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
7.5 x d ® Oil resistance none 1 2 3 4 highest 7.5 x d

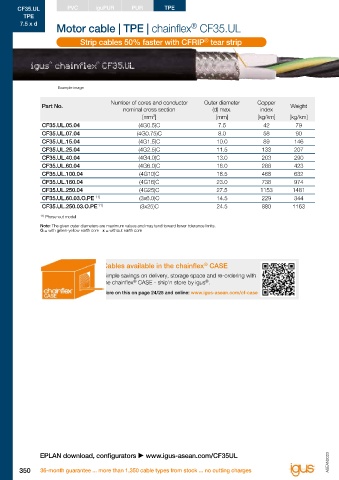

Motor cable | TPE | chainflex CF35.UL Class 6.6.4.1 Torsion none 1 2 3 4 ±360°

Strip cables 50% faster with CFRIP tear strip
®

Example image

Number of cores and conductor Outer diameter Copper Order example: CF35.UL.05.04 - to your desired length (0.5m steps)
Part No. Weight
nominal cross section (d) max. index CF35.UL chainflex series .05 Code nominal cross section .04 Number of cores
®
[mm²] [mm] [kg/km] [kg/km]
CF35.UL.05.04 (4G0.5)C 7.5 42 79 Order online  www.igus-asean.com/CF35UL
CF35.UL.07.04 (4G0.75)C 8.0 58 90
CF35.UL.15.04 (4G1.5)C 10.0 89 146 Delivery time 24hrs or today.
CF35.UL.25.04 (4G2.5)C 11.5 133 207 Delivery time means time until goods are shipped.
CF35.UL.40.04 (4G4.0)C 13.0 203 290
CF35.UL.60.04 (4G6.0)C 16.0 288 423
CF35.UL.100.04 (4G10)C 18.5 468 632
CF35.UL.160.04 (4G16)C 23.0 738 974
CF35.UL.250.04 (4G25)C 27.5 1153 1481
CF35.UL.60.03.O.PE 11) (3x6.0)C 14.5 229 344 Reduce cost, improve technology, now!
Do the chainflex price check ...
®
CF35.UL.250.03.O.PE 11) (3x25)C 24.5 880 1163 www.igus-asean.com/cf-price-check
11) Phase-out model
… for example: reduce cost with CF310.UL ...
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

®
Cables available in the chainflex CASE
Simple savings on delivery, storage space and re-ordering with
®
the chainflex CASE - ship'n store by igus .
®
More on this on page 24/25 and online: www.igus-asean.com/cf-case

EPLAN download, configurators  www.igus-asean.com/CF35UL
