Page 366 - ASEAN Chainflex Catalogue 2023

CF886 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF886
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
15 x d ® Oil resistance none 1 2 3 4 highest 15 x d

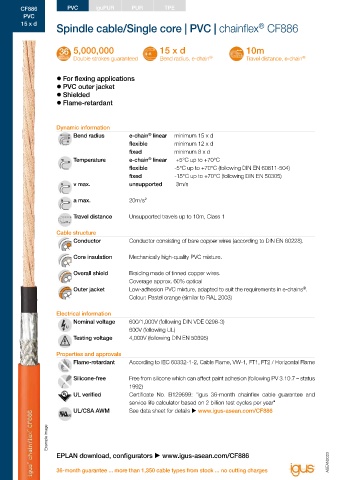

Spindle cable/Single core | PVC | chainflex CF886 Class 3.1.1.1 Torsion none 1 2 3 4 ±360°

5,000,000 15 x d 10m NFPA Following NFPA 79-2018, chapter 12.9
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®
EAC Certificate No. RU C-DE.ME77.B.00302/19

z For flexing applications REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
z PVC outer jacket
z Shielded Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
z Flame-retardant
CE Following 2014/35/EU

Dynamic information UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
®
Bend radius e-chain linear minimum 15 x d
flexible minimum 12 x d
fixed minimum 8 x d Guaranteed service life (details see page 28-29)
®
Temperature e-chain linear +5°C up to +70°C Double strokes* 1 million 3 million 5 million

flexible -5°C up to +70°C (following DIN EN 60811-504) Temperature, R min. R min. R min.
fixed -15°C up to +70°C (following DIN EN 50305) from/to [°C] [factor x d] [factor x d] [factor x d]
v max. unsupported 3m/s +5/+15 17.5 18.5 19.5
+15/+60 15 16 17
a max. 20m/s² +60/+70 17.5 18.5 19.5
* Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Travel distance Unsupported travels up to 10m, Class 1
Typical application areas
Cable structure z For flexing applications, Class 3
Conductor Conductor consisting of bare copper wires (according to DIN EN 60228). z Especially for unsupported travels, Class 1
z Without influence of oil, Class 1
Core insulation Mechanically high-quality PVC mixture. z No torsion, Class 1
z Preferably indoor applications
Overall shield Braiding made of tinned copper wires. z Wood/stone processing, packaging industry, feeding, handling, adjusting devices
Coverage approx. 60% optical
®
Outer jacket Low-adhesion PVC mixture, adapted to suit the requirements in e-chains .
Colour: Pastel orange (similar to RAL 2003) Number of cores and conductor Outer diameter Copper
Part No. Weight
nominal cross section (d) max. index
Electrical information [mm²] [mm] [kg/km] [kg/km]
Nominal voltage 600/1,000V (following DIN VDE 0298-3) CF886.160.01 (1x16)C 11.5 186 262
600V (following UL) CF886.250.01 (1x25)C 13.0 280 363
Testing voltage 4,000V (following DIN EN 50395) CF886.350.01 (1x35)C 15.5 394 535
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
Properties and approvals
Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame

Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
1992) Cables available in the chainflex CASE
®
UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and Simple savings on delivery, storage space and re-ordering with
service life calculator based on 2 billion test cycles per year" the chainflex CASE - ship'n store by igus .
®
®
UL/CSA AWM See data sheet for details  www.igus-asean.com/CF886
More on this on page 24/25 and online: www.igus-asean.com/cf-case
Example image

EPLAN download, configurators  www.igus-asean.com/CF886

360 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 361
®
