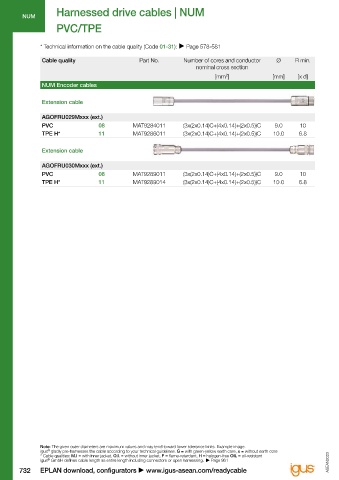

Harnessed drive cables | NUM Harnessed drive cables | Omron
NUM Omron
PVC/TPE PVC/PUR/TPE

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
NUM Encoder cables Omron Motor cables

Extension cable Basic cable

AGOFRU029Mxxx (ext.) R88A-CAWA-xxxS-DE
PVC 08 MAT9284011 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 9.0 10 TPE F 02 MAT9810004 (4G0.5)C 7.5 7.5
TPE H* 11 MAT9286011 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 10.0 6.8 TPE H* 03 MAT9962104 (4G0.5)C 8.0 7.5
R88A-CAWCxxx
Extension cable PVC M.I. 01 MAT9710005 (4G1.5)C 10.0 7.5
TPE F 02 MAT9810005 (4G1.5)C 10.0 7.5
AGOFRU030Mxxx (ext.) TPE H* 03 MAT9962105 (4G1.5)C 10.0 7.5
PVC 08 MAT9289011 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 9.0 10 R88A-CAWCxxxS-E
TPE H* 11 MAT9289014 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 10.0 6.8 PVC M.I. 01 MAT9710003 (4G1.5)C 10.0 7.5
TPE F 02 MAT9810003 (4G1.5)C 10.0 7.5
TPE H* 03 MAT9962103 (4G1.5)C 10.0 7.5
R88A-CAWDxxxS
PVC M.I. 01 MAT9710006 (4G2.5)C 11.5 7.5
TPE F 02 MAT9810006 (4G2.5)C 11.5 7.5
TPE H* 03 MAT9962106 (4G2.5)C 11.5 7.5
R88A-CAWDxxxS-E
PVC M.I. 01 MAT9710001 (4G2.5)C 11.5 7.5
TPE F 02 MAT9810001 (4G2.5)C 11.5 7.5
TPE H* 03 MAT9962101 (4G2.5)C 11.5 7.5
R88A-CAWFxxxS-E
PVC M.I. 01 MAT9710002 (4G4.0)C 13.0 7.5
TPE F 02 MAT9810002 (4G4.0)C 13.0 7.5
TPE H* 03 MAT9962102 (4G4.0)C 13.0 7.5
Omron Control cables

Basic cable

JZSP-CHM000-xx-E
PVC M.I. 18 MAT9712103 (5G0.5)C 8.0 7.5
PVC, oil-res. 20 MAT9710015 (5G0.5)C 8.5 6.8
PUR M.I. 22 MAT9810015 (5G0.5)C 8.0 6.8
TPE H* 24 MAT9912103 (5x0.5)C 7.5 5

Basic cable

JZSP-CHM000-xx-ME
PVC M.I. 18 MAT9712104 (5G0.5)C 8.0 7.5
PVC, oil-res. 20 MAT9710016 (5G0.5)C 8.5 6.8
PUR M.I. 22 MAT9810016 (5G0.5)C 8.0 6.8
TPE H* 24 MAT9912104 (5x0.5)C 7.5 5

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
