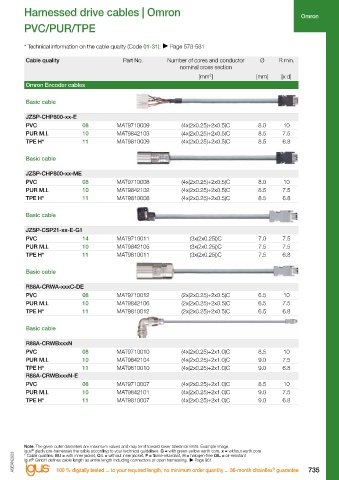

Harnessed drive cables | Omron Harnessed drive cables | Omron
Omron Omron
PVC/PUR/TPE PVC/PUR/TPE

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Omron Control cables Omron Encoder cables

Basic cable Basic cable

JZSP-CHM030-xx-E JZSP-CHP800-xx-E
PVC M.I. 18 MAT9712105 (7G0.75)C 10.0 7.5 PVC 08 MAT9710009 (4x(2x0.25)+2x0.5)C 8.0 10
PVC, oil-res. 20 MAT9710017 (7G0.5)C 10.0 6.8 PUR M.I. 10 MAT9842103 (4x(2x0.25)+2x0.5)C 8.5 7.5
PUR M.I. 22 MAT9810017 (7G0.5)C 9.5 6.8 TPE H* 11 MAT9810009 (4x(2x0.25)+2x0.5)C 8.5 6.8
TPE H* 24 MAT9912105 (7x0.5)C 8.5 5
Basic cable
Basic cable
JZSP-CHP800-xx-ME
JZSP-CHM030-xx-ME PVC 08 MAT9710008 (4x(2x0.25)+2x0.5)C 8.0 10
PVC M.I. 18 MAT9712106 (7G0.75)C 10.0 7.5 PUR M.I. 10 MAT9842102 (4x(2x0.25)+2x0.5)C 8.5 7.5
PVC, oil-res. 20 MAT9710018 (7G0.5)C 10.0 6.8 TPE H* 11 MAT9810008 (4x(2x0.25)+2x0.5)C 8.5 6.8
PUR M.I. 22 MAT9810018 (7G0.5)C 9.5 6.8
TPE H* 24 MAT9912106 (7x0.5)C 8.5 5 Basic cable

Basic cable JZSP-CSP21-xx-E-G1
PVC 14 MAT9710011 (3x(2x0.25))C 7.0 7.5
JZSP-CSM22-xx-E-G1 PUR M.I. 10 MAT9842105 (3x(2x0.25))C 7.5 7.5
PVC M.I. 18 MAT9712102 (4G0.75)C 8.5 7.5 TPE H* 11 MAT9810011 (3x(2x0.25))C 7.5 6.8
PVC, oil-res. 20 MAT9710014 (4G0.75)C 8.5 6.8
PUR M.I. 22 MAT9810014 (4G0.75)C 8.5 6.8 Basic cable
TPE H* 24 MAT9912102 (4G0.75)C 7.5 5
R88A-CRWA-xxxC-DE
Basic cable PVC 08 MAT9710012 (2x(2x0.25)+2x0.5)C 6.5 10
PUR M.I. 10 MAT9842106 (2x(2x0.25)+2x0.5)C 6.5 7.5
R88A-CAWCxxxB-E TPE H* 11 MAT9810012 (2x(2x0.25)+2x0.5)C 6.5 6.8
PVC 17 MAT9712101 2x0.5 5.5 7.5
PVC, oil-res. 19 MAT9710013 2x0.5 6.0 6.8 Basic cable
PUR 21 MAT9810013 3G0.75 6.5 6.8
TPE H* 23 MAT9912101 2x0.5 5.0 5 R88A-CRWBxxxN
PVC 08 MAT9710010 (4x(2x0.25)+2x1.0)C 8.5 10
Basic cable PUR M.I. 10 MAT9842104 (4x(2x0.25)+2x1.0)C 9.0 7.5
TPE H* 11 MAT9810010 (4x(2x0.25)+2x1.0)C 9.0 6.8
R88A-CAWExxxB R88A-CRWBxxxN-E
PVC M.I. 18 MAT9712107 (3G0.5)C 7.0 7.5 PVC 08 MAT9710007 (4x(2x0.25)+2x1.0)C 8.5 10
PVC, oil-res. 20 MAT9710019 (2x0.5)C 7.0 6.8 PUR M.I. 10 MAT9842101 (4x(2x0.25)+2x1.0)C 9.0 7.5
PUR M.I. 22 MAT9810019 (4G0.5)C 8.0 6.8 TPE H* 11 MAT9810007 (4x(2x0.25)+2x1.0)C 9.0 6.8
TPE H* 24 MAT9912107 (4x0.5)C 7.0 5

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
