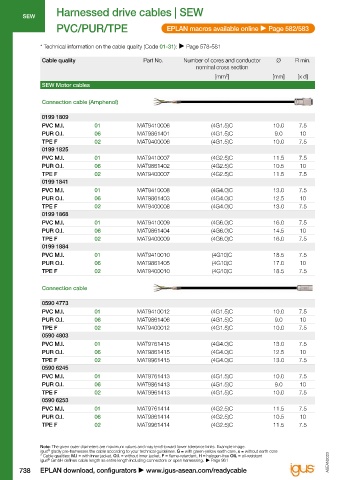

Page 744 - ASEAN Chainflex Catalogue 2023
P. 744
Harnessed drive cables | SEW Harnessed drive cables | SEW
SEW SEW
PVC/PUR/TPE EPLAN macros available online Page 582/583 PVC/PUR/TPE EPLAN macros available online Page 582/583
* Technical information on the cable quality (Code 01-31): Page 578-581 * Technical information on the cable quality (Code 01-31): Page 578-581
Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
SEW Motor cables SEW Motor cables
Connection cable (Amphenol) Connection cable
0199 1809 1335 0293
PVC M.I. 01 MAT9410006 (4G1.5)C 10.0 7.5 PVC M.I. 01 MAT9761416 (4G6.0)C 16.0 7.5
PUR O.I. 06 MAT9861401 (4G1.5)C 9.0 10 PUR O.I. 06 MAT9861416 (4G6.0)C 14.5 10
TPE F 02 MAT9400006 (4G1.5)C 10.0 7.5 TPE F 02 MAT9961416 (4G6.0)C 16.0 7.5
0199 1825 1335 0307
PVC M.I. 01 MAT9410007 (4G2.5)C 11.5 7.5 PVC M.I. 01 MAT9761417 (4G10)C 18.5 7.5
PUR O.I. 06 MAT9861402 (4G2.5)C 10.5 10 PUR O.I. 06 MAT9861417 (4G10)C 17.0 10
TPE F 02 MAT9400007 (4G2.5)C 11.5 7.5 TPE F 02 MAT9961417 (4G10)C 18.5 7.5
0199 1841 1335 0315
PVC M.I. 01 MAT9410008 (4G4.0)C 13.0 7.5 PVC M.I. 01 MAT9761418 (4G16)C 23.0 7.5
PUR O.I. 06 MAT9861403 (4G4.0)C 12.5 10 PUR O.I. 06 MAT9861418 (4G16)C 20.5 10
TPE F 02 MAT9400008 (4G4.0)C 13.0 7.5 TPE F 02 MAT9961418 (4G16)C 23.0 7.5
0199 1868
PVC M.I. 01 MAT9410009 (4G6.0)C 16.0 7.5 Extension cable (Amphenol)
PUR O.I. 06 MAT9861404 (4G6.0)C 14.5 10
TPE F 02 MAT9400009 (4G6.0)C 16.0 7.5 0199 5502
0199 1884 PVC M.I. 01 MAT9411006 (4G1.5)C 10.0 7.5
PVC M.I. 01 MAT9410010 (4G10)C 18.5 7.5 PUR O.I. 06 MAT9861407 (4G1.5)C 9.0 10
PUR O.I. 06 MAT9861405 (4G10)C 17.0 10 TPE F 02 MAT9401006 (4G1.5)C 10.0 7.5
TPE F 02 MAT9400010 (4G10)C 18.5 7.5 0199 5529
PVC M.I. 01 MAT9411007 (4G2.5)C 11.5 7.5
Connection cable PUR O.I. 06 MAT9861408 (4G2.5)C 10.5 10
TPE F 02 MAT9401007 (4G2.5)C 11.5 7.5
0590 4773 0199 5545
PVC M.I. 01 MAT9410012 (4G1.5)C 10.0 7.5 PVC M.I. 01 MAT9411008 (4G4.0)C 13.0 7.5
PUR O.I. 06 MAT9861406 (4G1.5)C 9.0 10 PUR O.I. 06 MAT9861409 (4G4.0)C 12.5 10
TPE F 02 MAT9400012 (4G1.5)C 10.0 7.5 TPE F 02 MAT9401008 (4G4.0)C 13.0 7.5
0590 4803 0199 5561
PVC M.I. 01 MAT9761415 (4G4.0)C 13.0 7.5 PVC M.I. 01 MAT9411009 (4G6.0)C 16.0 7.5
PUR O.I. 06 MAT9861415 (4G4.0)C 12.5 10 PUR O.I. 06 MAT9861410 (4G6.0)C 14.5 10
TPE F 02 MAT9961415 (4G4.0)C 13.0 7.5 TPE F 02 MAT9401009 (4G6.0)C 16.0 7.5
0590 6245 0199 5588
PVC M.I. 01 MAT9761413 (4G1.5)C 10.0 7.5 PVC M.I. 01 MAT9411010 (4G10)C 18.5 7.5
PUR O.I. 06 MAT9861413 (4G1.5)C 9.0 10 PUR O.I. 06 MAT9861411 (4G10)C 17.0 10
TPE F 02 MAT9961413 (4G1.5)C 10.0 7.5 TPE F 02 MAT9401010 (4G10)C 18.5 7.5
0590 6253
PVC M.I. 01 MAT9761414 (4G2.5)C 11.5 7.5
PUR O.I. 06 MAT9861414 (4G2.5)C 10.5 10
TPE F 02 MAT9961414 (4G2.5)C 11.5 7.5
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
