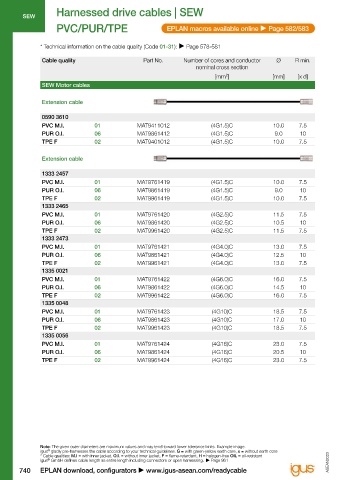

Harnessed drive cables | SEW Harnessed drive cables | SEW
SEW SEW
PVC/PUR/TPE EPLAN macros available online  Page 582/583 PVC/PUR EPLAN macros available online  Page 582/583

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
SEW Motor cables SEW Servo cables

Extension cable Connection cable (Amphenol)

0590 3610 0199 1906
PVC M.I. 01 MAT9411012 (4G1.5)C 10.0 7.5 PVC O.I. 04 MAT9751401 (4G1.5+2x(2x0.75)C)C 13.5 10
PUR O.I. 06 MAT9861412 (4G1.5)C 9.0 10 PVC M.I. 05 MAT9410001 (4G1.5+2x(2x0.75)C)C 14.5 7.5
TPE F 02 MAT9401012 (4G1.5)C 10.0 7.5 PUR O.I. 06 MAT9851401 (4G1.5+2x(2x0.75)C)C 13.5 10
PUR M.I. 07 MAT9400001 (4G1.5+2x(2x0.75)C)C 14.5 7.5
Extension cable 0199 1922
PVC O.I. 04 MAT9751402 (4G2.5+2x(2x1.5)C)C 16.0 10
1333 2457 PVC M.I. 05 MAT9410002 (4G2.5+2x(2x1.5)C)C 17.0 7.5
PVC M.I. 01 MAT9761419 (4G1.5)C 10.0 7.5 PUR O.I. 06 MAT9851402 (4G2.5+2x(2x1.5)C)C 16.0 10
PUR O.I. 06 MAT9861419 (4G1.5)C 9.0 10 PUR M.I. 07 MAT9400002 (4G2.5+2x(2x1.5)C)C 16.0 7.5
TPE F 02 MAT9961419 (4G1.5)C 10.0 7.5 0199 1949
1333 2465 PVC O.I. 04 MAT9751403 (4G4.0+2x(2x1.5)C)C 17.0 10
PVC M.I. 01 MAT9761420 (4G2.5)C 11.5 7.5 PVC M.I. 05 MAT9410003 (4G4.0+2x(2x1.5)C)C 18.0 7.5
PUR O.I. 06 MAT9861420 (4G2.5)C 10.5 10 PUR O.I. 06 MAT9851403 (4G4.0+2x(2x1.5)C)C 17.0 10
TPE F 02 MAT9961420 (4G2.5)C 11.5 7.5 PUR M.I. 07 MAT9400003 (4G4.0+2x(2x1.5)C)C 17.5 7.5
1333 2473 0199 1965
PVC M.I. 01 MAT9761421 (4G4.0)C 13.0 7.5 PVC O.I. 04 MAT9751404 (4G6.0+2x(2x1.5)C)C 19.0 10
PUR O.I. 06 MAT9861421 (4G4.0)C 12.5 10 PVC M.I. 05 MAT9410004 (4G6.0+2x(2x1.5)C)C 21.0 7.5
TPE F 02 MAT9961421 (4G4.0)C 13.0 7.5 PUR O.I. 06 MAT9851404 (4G6.0+2x(2x1.5)C)C 19.0 10
1335 0021 PUR M.I. 07 MAT9400004 (4G6.0+2x(2x1.5)C)C 19.5 7.5
PVC M.I. 01 MAT9761422 (4G6.0)C 16.0 7.5 0199 1981
PUR O.I. 06 MAT9861422 (4G6.0)C 14.5 10 PVC M.I. 05 MAT9410005 (4G10+2x(2x1.5)C)C 23.0 7.5
TPE F 02 MAT9961422 (4G6.0)C 16.0 7.5 PUR O.I. 06 MAT9851405 (4G10+2x(2x1.5)C)C 22.5 10
1335 0048 PUR M.I. 07 MAT9400005 (4G10+2x(2x1.5)C)C 22.5 7.5
PVC M.I. 01 MAT9761423 (4G10)C 18.5 7.5
PUR O.I. 06 MAT9861423 (4G10)C 17.0 10 Connection cable
TPE F 02 MAT9961423 (4G10)C 18.5 7.5
1335 0056 1332 4861
PVC M.I. 01 MAT9761424 (4G16)C 23.0 7.5 PVC O.I. 04 MAT9751405 (4G1.5+(2x1.5)C) 12.5 10
PUR O.I. 06 MAT9861424 (4G16)C 20.5 10 PVC M.I. 05 MAT9410011 (4G1.5+(2x1.5)C) 13.0 7.5
TPE F 02 MAT9961424 (4G16)C 23.0 7.5 PUR O.I. 06 MAT9851406 (4G1.5+(2x1.5)C) 12.5 10
PUR M.I. 07 MAT9400011 (4G1.5+(2x1.5)C) 13.0 7.5

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
