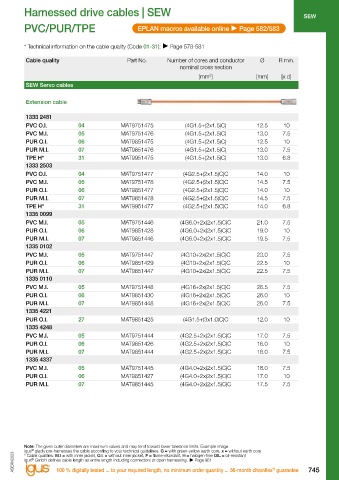

Page 751 - ASEAN Chainflex Catalogue 2023

Harnessed drive cables | SEW Harnessed drive cables | SEW
SEW SEW
PVC/PUR EPLAN macros available online  Page 582/583 PVC/PUR/TPE EPLAN macros available online  Page 582/583

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
SEW Servo cables SEW Servo cables

Extension cable (Amphenol) Extension cable

0199 2082 1333 2481
PVC M.I. 05 MAT9411005 (4G10+2x(2x1.5)C)C 23.0 7.5 PVC O.I. 04 MAT9751475 (4G1.5+(2x1.5)C) 12.5 10
PUR O.I. 06 MAT9851411 (4G10+2x(2x1.5)C)C 22.5 10 PVC M.I. 05 MAT9751476 (4G1.5+(2x1.5)C) 13.0 7.5
PUR M.I. 07 MAT9401005 (4G10+2x(2x1.5)C)C 22.5 7.5 PUR O.I. 06 MAT9851475 (4G1.5+(2x1.5)C) 12.5 10
PUR M.I. 07 MAT9851476 (4G1.5+(2x1.5)C) 13.0 7.5
Extension cable TPE H* 31 MAT9951475 (4G1.5+(2x1.5)C) 13.0 6.8
1333 2503
0593 6500 PVC O.I. 04 MAT9751477 (4G2.5+(2x1.5)C)C 14.0 10
PVC O.I. 04 MAT9751410 (4G1.5+(2x1.5)C) 12.5 10 PVC M.I. 05 MAT9751478 (4G2.5+(2x1.5)C)C 14.5 7.5
PVC M.I. 05 MAT9411011 (4G1.5+(2x1.5)C) 13.0 7.5 PUR O.I. 06 MAT9851477 (4G2.5+(2x1.5)C)C 14.0 10
PUR O.I. 06 MAT9851412 (4G1.5+(2x1.5)C) 12.5 10 PUR M.I. 07 MAT9851478 (4G2.5+(2x1.5)C)C 14.5 7.5
PUR M.I. 07 MAT9401011 (4G1.5+(2x1.5)C) 13.0 7.5 TPE H* 31 MAT9951477 (4G2.5+(2x1.5)C)C 14.0 6.8
1335 0099
PVC M.I. 05 MAT9751446 (4G6.0+2x(2x1.5)C)C 21.0 7.5
Extension cable
PUR O.I. 06 MAT9851428 (4G6.0+2x(2x1.5)C)C 19.0 10
PUR M.I. 07 MAT9851446 (4G6.0+2x(2x1.5)C)C 19.5 7.5
1333 1205 1335 0102
PUR O.I. 27 MAT9851480 (4G1.5+(3x1.0)C)C 12.0 10 PVC M.I. 05 MAT9751447 (4G10+2x(2x1.5)C)C 23.0 7.5
PUR O.I. 06 MAT9851429 (4G10+2x(2x1.5)C)C 22.5 10
PUR M.I. 07 MAT9851447 (4G10+2x(2x1.5)C)C 22.5 7.5
1335 0110
PVC M.I. 05 MAT9751448 (4G16+2x(2x1.5)C)C 26.5 7.5
PUR O.I. 06 MAT9851430 (4G16+2x(2x1.5)C)C 26.0 10
PUR M.I. 07 MAT9851448 (4G16+2x(2x1.5)C)C 26.0 7.5
1335 4221
PUR O.I. 27 MAT9851425 (4G1.5+(3x1.0)C)C 12.0 10
1335 4248
PVC M.I. 05 MAT9751444 (4G2.5+2x(2x1.5)C)C 17.0 7.5
PUR O.I. 06 MAT9851426 (4G2.5+2x(2x1.5)C)C 16.0 10

EPLAN macros suitable for SEW available PUR M.I. 07 MAT9851444 (4G2.5+2x(2x1.5)C)C 16.0 7.5
online 1335 4337
PVC M.I. 05 MAT9751445 (4G4.0+2x(2x1.5)C)C 18.0 7.5
Can be used directly in CAE planning. PUR O.I. 06 MAT9851427 (4G4.0+2x(2x1.5)C)C 17.0 10
Learn more about it on page 582/583 and online: www.igus-asean.com/eplan-macro
PUR M.I. 07 MAT9851445 (4G4.0+2x(2x1.5)C)C 17.5 7.5

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
