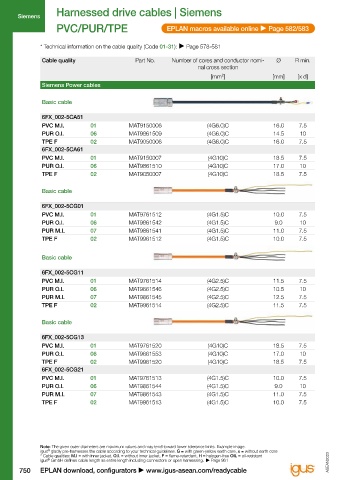

Page 756 - ASEAN Chainflex Catalogue 2023
P. 756
Harnessed drive cables | Siemens Harnessed drive cables | Siemens
Siemens Siemens
PVC/PUR/TPE EPLAN macros available online Page 582/583 PVC/PUR/TPE EPLAN macros available online Page 582/583
* Technical information on the cable quality (Code 01-31): Page 578-581 * Technical information on the cable quality (Code 01-31): Page 578-581
Cable quality Part No. Number of cores and conductor nomi- Ø R min. Cable quality Part No. Number of cores and conductor nomi- Ø R min.
nal cross section nal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Siemens Power cables Siemens Power cables
Basic cable Basic cable
6FX_002-5CA51 6FX_002-5CG23
PVC M.I. 01 MAT9150006 (4G6.0)C 16.0 7.5 PVC M.I. 01 MAT9761521 (4G16)C 23.0 7.5
PUR O.I. 06 MAT9861509 (4G6.0)C 14.5 10 PUR O.I. 06 MAT9861554 (4G16)C 20.5 10
TPE F 02 MAT9050006 (4G6.0)C 16.0 7.5 TPE F 02 MAT9961521 (4G16)C 23.0 7.5
6FX_002-5CA61 6FX_002-5CG31
PVC M.I. 01 MAT9150007 (4G10)C 18.5 7.5 PVC M.I. 01 MAT9761516 (4G2.5)C 11.5 7.5
PUR O.I. 06 MAT9861510 (4G10)C 17.0 10 PUR O.I. 06 MAT9861549 (4G2.5)C 10.5 10
TPE F 02 MAT9050007 (4G10)C 18.5 7.5 PUR M.I. 07 MAT9861548 (4G2.5)C 12.5 7.5
TPE F 02 MAT9961516 (4G2.5)C 11.5 7.5
Basic cable 6FX_002-5CG41
PVC M.I. 01 MAT9761517 (4G4.0)C 13.0 7.5
6FX_002-5CG01 PUR O.I. 06 MAT9861550 (4G4.0)C 12.5 10
PVC M.I. 01 MAT9761512 (4G1.5)C 10.0 7.5 TPE F 02 MAT9961517 (4G4.0)C 13.0 7.5
PUR O.I. 06 MAT9861542 (4G1.5)C 9.0 10 6FX_002-5CG51
PUR M.I. 07 MAT9861541 (4G1.5)C 11.0 7.5 PVC M.I. 01 MAT9761518 (4G6.0)C 16.0 7.5
TPE F 02 MAT9961512 (4G1.5)C 10.0 7.5 PUR O.I. 06 MAT9861551 (4G6.0)C 14.5 10
TPE F 02 MAT9961518 (4G6.0)C 16.0 7.5
6FX_002-5CG61
Basic cable
PVC M.I. 01 MAT9761519 (4G10)C 18.5 7.5
6FX_002-5CG11 PUR O.I. 06 MAT9861552 (4G10)C 17.0 10
PVC M.I. 01 MAT9761514 (4G2.5)C 11.5 7.5 TPE F 02 MAT9961519 (4G10)C 18.5 7.5
PUR O.I. 06 MAT9861546 (4G2.5)C 10.5 10
PUR M.I. 07 MAT9861545 (4G2.5)C 12.5 7.5 Basic cable
TPE F 02 MAT9961514 (4G2.5)C 11.5 7.5
6FX_002-5CK01
Basic cable PUR M.I. 07 MAT98615112 (4G0.75)C 9.5 7.5
TPE F 02 MAT9961556 (4G0.75)C 8.0 7.5
6FX_002-5CG13
PVC M.I. 01 MAT9761520 (4G10)C 18.5 7.5 Basic cable
PUR O.I. 06 MAT9861553 (4G10)C 17.0 10
TPE F 02 MAT9961520 (4G10)C 18.5 7.5
6FX_002-5CG21 6FX_002-5CL01
PVC M.I. 01 MAT9761513 (4G1.5)C 10.0 7.5 PVC M.I. 01 MAT9761563 (4G1.5)C 10.0 7.5
PUR O.I. 06 MAT9861544 (4G1.5)C 9.0 10 PUR O.I. 06 MAT98615114 (4G1.5)C 9.0 10
PUR M.I. 07 MAT9861543 (4G1.5)C 11.0 7.5 PUR M.I. 07 MAT98615115 (4G1.5)C 11.0 7.5
TPE F 02 MAT9961513 (4G1.5)C 10.0 7.5 TPE F 02 MAT9961557 (4G1.5)C 10.0 7.5
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
750 EPLAN download, configurators www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 751
®
