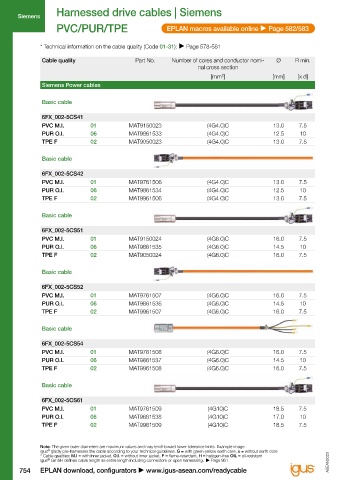

Page 760 - ASEAN Chainflex Catalogue 2023
P. 760
Harnessed drive cables | Siemens Harnessed drive cables | Siemens
Siemens Siemens
PVC/PUR/TPE EPLAN macros available online Page 582/583 PVC/PUR/TPE EPLAN macros available online Page 582/583
* Technical information on the cable quality (Code 01-31): Page 578-581 * Technical information on the cable quality (Code 01-31): Page 578-581
Cable quality Part No. Number of cores and conductor nomi- Ø R min. Cable quality Part No. Number of cores and conductor nomi- Ø R min.
nal cross section nal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Siemens Power cables Siemens Power cables
Basic cable Basic cable
6FX_002-5CS41 6FX_002-5CS62
PVC M.I. 01 MAT9150023 (4G4.0)C 13.0 7.5 PVC M.I. 01 MAT9761510 (4G10)C 18.5 7.5
PUR O.I. 06 MAT9861533 (4G4.0)C 12.5 10 PUR O.I. 06 MAT9861539 (4G10)C 17.0 10
TPE F 02 MAT9050023 (4G4.0)C 13.0 7.5 TPE F 02 MAT9961510 (4G10)C 18.5 7.5
Basic cable Basic cable
6FX_002-5CS42 6FX_002-5CS64
PVC M.I. 01 MAT9761506 (4G4.0)C 13.0 7.5 PVC M.I. 01 MAT9761511 (4G10)C 18.5 7.5
PUR O.I. 06 MAT9861534 (4G4.0)C 12.5 10 PUR O.I. 06 MAT9861540 (4G10)C 17.0 10
TPE F 02 MAT9961506 (4G4.0)C 13.0 7.5 TPE F 02 MAT9961511 (4G10)C 18.5 7.5
Basic cable Extension cable
6FX_002-5CS51 6FX_002-5CA05
PVC M.I. 01 MAT9150024 (4G6.0)C 16.0 7.5 PVC M.I. 01 MAT9151001 (4G1.5)C 10.0 7.5
PUR O.I. 06 MAT9861535 (4G6.0)C 14.5 10 PUR O.I. 06 MAT9861515 (4G1.5)C 9.0 10
TPE F 02 MAT9050024 (4G6.0)C 16.0 7.5 TPE F 02 MAT9051001 (4G1.5)C 10.0 7.5
6FX_002-5CA15
Basic cable PVC M.I. 01 MAT9151002 (4G2.5)C 11.5 7.5
PUR O.I. 06 MAT9861516 (4G2.5)C 10.5 10
6FX_002-5CS52 TPE F 02 MAT9051002 (4G2.5)C 11.5 7.5
PVC M.I. 01 MAT9761507 (4G6.0)C 16.0 7.5
PUR O.I. 06 MAT9861536 (4G6.0)C 14.5 10 Extension cable
TPE F 02 MAT9961507 (4G6.0)C 16.0 7.5
6FX_002-5CA28
Basic cable PVC M.I. 01 MAT9151003 (4G1.5)C 10.0 7.5
PUR O.I. 06 MAT9861517 (4G1.5)C 9.0 10
6FX_002-5CS54 TPE F 02 MAT9051003 (4G1.5)C 10.0 7.5
PVC M.I. 01 MAT9761508 (4G6.0)C 16.0 7.5 6FX_002-5CA38
PUR O.I. 06 MAT9861537 (4G6.0)C 14.5 10 PVC M.I. 01 MAT9151004 (4G2.5)C 11.5 7.5
TPE F 02 MAT9961508 (4G6.0)C 16.0 7.5 PUR O.I. 06 MAT9861518 (4G2.5)C 10.5 10
TPE F 02 MAT9051004 (4G2.5)C 11.5 7.5
Basic cable 6FX_002-5CA48
PVC M.I. 01 MAT9151005 (4G4.0)C 13.0 7.5
6FX_002-5CS61 PUR O.I. 06 MAT9861519 (4G4.0)C 12.5 10
PVC M.I. 01 MAT9761509 (4G10)C 18.5 7.5 TPE F 02 MAT9051005 (4G4.0)C 13.0 7.5
PUR O.I. 06 MAT9861538 (4G10)C 17.0 10
TPE F 02 MAT9961509 (4G10)C 18.5 7.5
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
