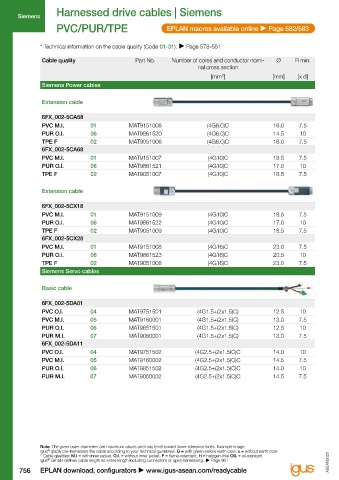

Page 762 - ASEAN Chainflex Catalogue 2023
P. 762
Harnessed drive cables | Siemens Harnessed drive cables | Siemens
Siemens Siemens
PVC/PUR/TPE EPLAN macros available online Page 582/583 PVC/PUR/TPE EPLAN macros available online Page 582/583
* Technical information on the cable quality (Code 01-31): Page 578-581 * Technical information on the cable quality (Code 01-31): Page 578-581
Cable quality Part No. Number of cores and conductor nomi- Ø R min. Cable quality Part No. Number of cores and conductor nomi- Ø R min.
nal cross section nal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Siemens Power cables Siemens Servo cables
Extension cable Basic cable
6FX_002-5CA58 6FX_002-5DA21
PVC M.I. 01 MAT9151006 (4G6.0)C 16.0 7.5 PVC O.I. 04 MAT9751503 (4G1.5+(2x1.5)C) 12.5 10
PUR O.I. 06 MAT9861520 (4G6.0)C 14.5 10 PVC M.I. 05 MAT9160003 (4G1.5+(2x1.5)C) 13.0 7.5
TPE F 02 MAT9051006 (4G6.0)C 16.0 7.5 PUR O.I. 06 MAT9851503 (4G1.5+(2x1.5)C) 12.5 10
6FX_002-5CA68 PUR M.I. 07 MAT9060003 (4G1.5+(2x1.5)C) 13.0 7.5
PVC M.I. 01 MAT9151007 (4G10)C 18.5 7.5
PUR O.I. 06 MAT9861521 (4G10)C 17.0 10 Basic cable
TPE F 02 MAT9051007 (4G10)C 18.5 7.5
6FX_002-5DA23
Extension cable PVC M.I. 05 MAT9160008 (4G16+(2x1.5)C)C 25.0 7.5
PUR O.I. 06 MAT9851508 (4G16+(2x1.5)C)C 24.0 10
6FX_002-5CX18 PUR M.I. 07 MAT9060008 (4G16+(2x1.5)C)C 24.0 7.5
PVC M.I. 01 MAT9151009 (4G10)C 18.5 7.5
PUR O.I. 06 MAT9861522 (4G10)C 17.0 10 Basic cable
TPE F 02 MAT9051009 (4G10)C 18.5 7.5
6FX_002-5CX28 6FX_002-5DA30
PVC M.I. 01 MAT9151008 (4G16)C 23.0 7.5 PVC O.I. 04 MAT97515127 (4G1.5+(2x1.5)C) 12.5 10
PUR O.I. 06 MAT9861523 (4G16)C 20.5 10 PUR O.I. 06 MAT98515151 (4G1.5+(2x1.5)C) 12.5 10
TPE F 02 MAT9051008 (4G16)C 23.0 7.5
Siemens Servo cables Basic cable
Basic cable 6FX_002-5DA31
PVC O.I. 04 MAT9751504 (4G2.5+(2x1.5)C)C 14.0 10
6FX_002-5DA01 PVC M.I. 05 MAT9160004 (4G2.5+(2x1.5)C)C 14.5 7.5
PVC O.I. 04 MAT9751501 (4G1.5+(2x1.5)C) 12.5 10 PUR O.I. 06 MAT9851504 (4G2.5+(2x1.5)C)C 14.0 10
PVC M.I. 05 MAT9160001 (4G1.5+(2x1.5)C) 13.0 7.5 PUR M.I. 07 MAT9060004 (4G2.5+(2x1.5)C)C 14.5 7.5
PUR O.I. 06 MAT9851501 (4G1.5+(2x1.5)C) 12.5 10
PUR M.I. 07 MAT9060001 (4G1.5+(2x1.5)C) 13.0 7.5 Basic cable
6FX_002-5DA11
PVC O.I. 04 MAT9751502 (4G2.5+(2x1.5)C)C 14.0 10 6FX_002-5DA33
PVC M.I. 05 MAT9160002 (4G2.5+(2x1.5)C)C 14.5 7.5 PVC M.I. 05 MAT9160009 (4G25+(2x1.5)C)C 30.0 7.5
PUR O.I. 06 MAT9851502 (4G2.5+(2x1.5)C)C 14.0 10 PUR M.I. 07 MAT9060009 (4G25+(2x1.5)C)C 28.0 7.5
PUR M.I. 07 MAT9060002 (4G2.5+(2x1.5)C)C 14.5 7.5
Basic cable
6FX_002-5DA41
PVC O.I. 04 MAT9751505 (4G4.0+(2x1.5)C)C 15.0 10
PVC M.I. 05 MAT9160005 (4G4.0+(2x1.5)C)C 16.0 7.5
PUR O.I. 06 MAT9851505 (4G4.0+(2x1.5)C)C 15.0 10
PUR M.I. 07 MAT9060005 (4G4.0+(2x1.5)C)C 16.0 7.5
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023
756 EPLAN download, configurators www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 757
®
