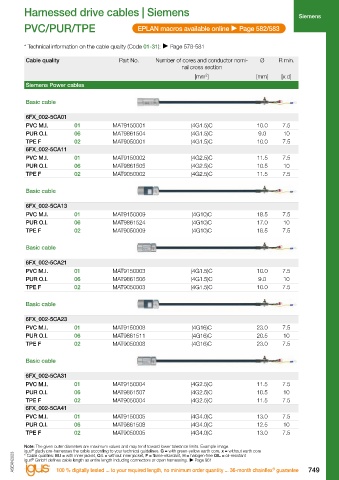

Harnessed drive cables | Siemens Harnessed drive cables | Siemens
Siemens Siemens
PVC/PUR/TPE EPLAN macros available online Page 582/583 PVC/PUR/TPE EPLAN macros available online Page 582/583
* Technical information on the cable quality (Code 01-31): Page 578-581 * Technical information on the cable quality (Code 01-31): Page 578-581
Cable quality Part No. Number of cores and conductor nomi- Ø R min. Cable quality Part No. Number of cores and conductor nomi- Ø R min.
nal cross section nal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Siemens Power cables Siemens Power cables
Basic cable Basic cable
6FX8002-5CN06 6FX_002-5CA01
PVC M.I. 01 MAT9761554 (4G1.5)C 10.0 7.5 PVC M.I. 01 MAT9150001 (4G1.5)C 10.0 7.5
PUR O.I. 06 MAT98615122 (4G1.5)C 9.0 10 PUR O.I. 06 MAT9861504 (4G1.5)C 9.0 10
PUR M.I. 07 MAT98615123 (4G1.5)C 11.0 7.5 TPE F 02 MAT9050001 (4G1.5)C 10.0 7.5
TPE F 02 MAT9961560 (4G1.5)C 10.0 7.5 6FX_002-5CA11
6FX8002-5CN16 PVC M.I. 01 MAT9150002 (4G2.5)C 11.5 7.5
PVC M.I. 01 MAT9761559 (4G2.5)C 11.5 7.5 PUR O.I. 06 MAT9861505 (4G2.5)C 10.5 10
PUR O.I. 06 MAT98615108 (4G2.5)C 10.5 10 TPE F 02 MAT9050002 (4G2.5)C 11.5 7.5
PUR M.I. 07 MAT98615107 (4G2.5)C 12.5 7.5
TPE F 02 MAT9961554 (4G2.5)C 11.5 7.5 Basic cable
Basic cable 6FX_002-5CA13
PVC M.I. 01 MAT9150009 (4G10)C 18.5 7.5
6FX8002-5CN26 PUR O.I. 06 MAT9861524 (4G10)C 17.0 10
PVC M.I. 01 MAT97515111 (4G1.5)C 10.0 7.5 TPE F 02 MAT9050009 (4G10)C 18.5 7.5
PUR O.I. 06 MAT98515130 (4G1.5)C 9.0 10
TPE F 02 MAT98515131 (4G1.5)C 10.0 7.5 Basic cable
6FX8002-5CN36
PVC M.I. 01 MAT9761556 (4G2.5)C 11.5 7.5 6FX_002-5CA21
PUR O.I. 06 MAT98615102 (4G2.5)C 10.5 10 PVC M.I. 01 MAT9150003 (4G1.5)C 10.0 7.5
PUR M.I. 07 MAT98615103 (4G2.5)C 12.5 7.5 PUR O.I. 06 MAT9861506 (4G1.5)C 9.0 10
TPE F 02 MAT9961552 (4G2.5)C 11.5 7.5 TPE F 02 MAT9050003 (4G1.5)C 10.0 7.5
6FX8002-5CN46
PVC M.I. 01 MAT9761557 (4G4.0)C 13.0 7.5 Basic cable
PUR O.I. 06 MAT98615105 (4G4.0)C 12.5 10
TPE F 02 MAT9961553 (4G4.0)C 13.0 7.5 6FX_002-5CA23
6FX8002-5CN56 PVC M.I. 01 MAT9150008 (4G16)C 23.0 7.5
PVC M.I. 01 MAT9761561 (4G6.0)C 16.0 7.5 PUR O.I. 06 MAT9861511 (4G16)C 20.5 10
PUR O.I. 06 MAT98615110 (4G6.0)C 14.5 10 TPE F 02 MAT9050008 (4G16)C 23.0 7.5
TPE F 02 MAT9961555 (4G6.0)C 16.0 7.5
Basic cable
Basic cable
6FX_002-5CA31
6FX8002-5CS06 PVC M.I. 01 MAT9150004 (4G2.5)C 11.5 7.5
PVC M.I. 01 MAT9761568 (4G1.5)C 10.0 7.5 PUR O.I. 06 MAT9861507 (4G2.5)C 10.5 10
PUR O.I. 06 MAT98615120 (4G1.5)C 9.0 10 TPE F 02 MAT9050004 (4G2.5)C 11.5 7.5
PUR M.I. 07 MAT98615121 (4G1.5)C 11.0 7.5 6FX_002-5CA41
TPE F 02 MAT9961559 (4G1.5)C 10.0 7.5 PVC M.I. 01 MAT9150005 (4G4.0)C 13.0 7.5
PUR O.I. 06 MAT9861508 (4G4.0)C 12.5 10
TPE F 02 MAT9050005 (4G4.0)C 13.0 7.5
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
748 EPLAN download, configurators www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 749
®
