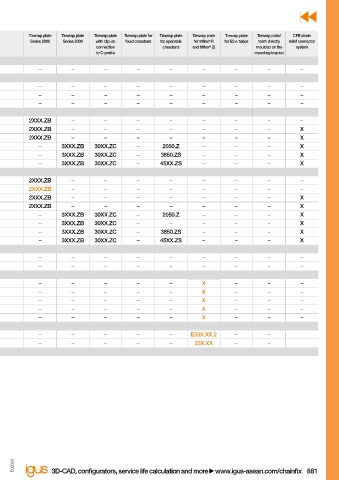

chainfix | Select your strain relief system

e-chain CFX CFXL CFU CFN Strain relief CFV Strain relief Tiewrap plate Tiewrap plate Tiewrap plate Tiewrap plate for Tiewrap plate Tiewrap plate Tiewrap plate Tiewrap plate/ CFB strain
®
Series/system Clamp, standard Clamp, for honeycomb chainfix nugget separator Stepped can be clipped Series 2000 Series 3000 with clip-on fixed crossbars for openable for triflex ® R for E2 e-tubes teeth directly relief connector
increased strain relief strain relief onto mounting connection crossbars and triflex ® 2) moulded on the system
holding force brackets/KMA to C-profile mounting bracket
T3
T3.29 – – – – E6.29.02.Z – 20XX.ZB – – – – – – – – –
E3
E3.10 – – – – – – E3.00.020 – – – – – – – – –
E3.15 – – – – – – E3.00.020 – – – – – – – – –
E3.22 – – – – – – E3.00.020 – – – – – – – – –
E6.1
E61.29/EF61.29 X 1) X 1) – – E6.29.02.Z – – 2XXX.ZB – – – – – – – –
E61.35 X 1) X 1) – – E6.35.02.Z – – 2XXX.ZB – – – – – – – X
E61.40 X X 1) – X E6.40.02.Z – – 2XXX.ZB – – – – – – – X
E61.52 X X 1) – X – – – – 3XXX.ZB 30XX.ZC – 2050.Z – – – X
E61.62 X X 1) – X – – – – 3XXX.ZB 30XX.ZC – 3850.ZS – – – X
E61.80 X X 1) – X – – – – 3XXX.ZB 30XX.ZC – 45XX.ZS – – – X
E6
E6.29 X 1) X 1) – – E6.29.02.Z – – 2XXX.ZB – – – – – – – –
R6.29 X 1) X 1) – – – – – 2XXX.ZB – – – – – – – –
E6.35 X 1) X 1) – – E6.35.02.Z – – 2XXX.ZB – – – – – – – X
E6.40 X X 1) – X E6.40.02.Z – – 2XXX.ZB – – – – – – – X
E6.52 X X 1) – X – – – – 3XXX.ZB 30XX.ZC – 2050.Z – – – X
R6.52 X X 1) – X – – – – 3XXX.ZB 30XX.ZC – – – – – X
E6.62 X X 1) – X – – – – 3XXX.ZB 30XX.ZC – 3850.ZS – – – X
E6.80L X X 1) – X – – – – 3XXX.ZB 30XX.ZC – 45XX.ZS – – – X
e-skin ®
SK28 – – – – – – 2000.077.ZB – – – – – – – – –
SK40 – – – – – – 2000.077.ZB – – – – – – – – –
triflex R
®
TRC X 1) X 1) – – – – – – – – – – X – – –
TRC X 1) X 1) – – – – – – – – – – X – – –
TRCF X 1) X 1) – – – – – – – – – – X – – –
TRL X 1) X 1) – – – – – – – – – – X – – –
TRLF X 1) X 1) – – – – – – – – – – X – – –
triflex ®
easy triflex ® X 1) – – – – – – – – – – – E33X.XX.2 – –
triflex ® X 1) – – – – – – – – – – – 33X.XX – –

1) Assembled in front of the mounting bracket. (CFXL clamps are always assembled before the mounting bracket in a separate C-profile 92.52.XX)
2) Can be found on the product page of each e-chain ® series
3) Half e-tube only
4) For KMA mounting bracket only
= recommended strain relief for selected e-chain ®
