chainfix chainfix strain relief | C-profile chainfix strain relief | Tests and proof chainfix

igus chainfix strain relief devices are tested in the in-house igus laboratory under
®
®

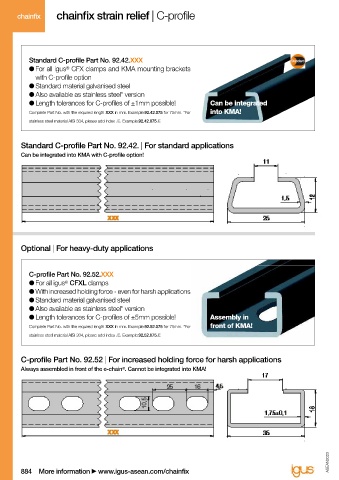

Standard C-profile Part No. 92.42.XXX real-world conditions, taking many parameters into account
● For all igus CFX clamps and KMA mounting brackets Whether under the influence of fluids like water or oil, or at different ambient temperatures. The interaction of chainfix systems with
®
with C-profile option different jacket materials of cables and hoses plays a big role in the in-house test program.
● Standard material galvanised steel
● Also available as stainless steel* version
● Length tolerances for C-profiles of ±1mm possible! Can be integrated
Complete Part No. with the required length XXX in mm. Example:92.42.075 for 75mm. *For into KMA!
stainless steel material AISI 304, please add index .E. Example:92.42.075.E

Standard C-profile Part No. 92.42. | For standard applications
Can be integrated into KMA with C-profile option!

Optional | For heavy-duty applications

igus tensile strength test CFX clamps with stacker saddle. Test: comparison of three different strain reliefs. Conclusion:
®
C-profile Part No. 92.52.XXX Conclusion: the tensile strength of igus chainfix clamps is triple tensile strength of igus chainfix clamps when compared
®
®
● For all igus CFXL clamps three times higher when compared with conventional strain with conventional products
®
● With increased holding force - even for harsh applications relief
● Standard material galvanised steel
● Also available as stainless steel* version
● Length tolerances for C-profiles of ±5mm possible! Assembly in
Complete Part No. with the required length XXX in mm. Example:92.52.075 for 75mm. *For front of KMA!
stainless steel material AISI 304, please add index .E. Example:92.52.075.E

C-profile Part No. 92.52 | For increased holding force for harsh applications
Always assembled in front of the e-chain . Cannot be integrated into KMA!
®

Tensile strength tests with chainflex cables. Tensile strength tests of igus chainfix tiewrap plate with cable
®
®
tiewraps.
