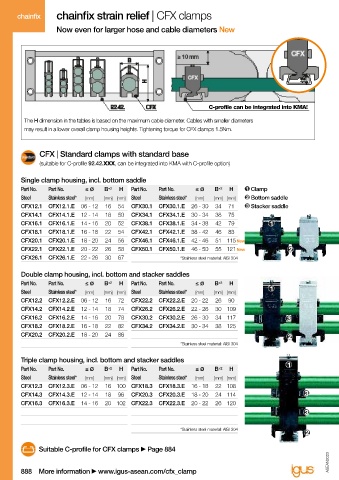

chainfix chainfix strain relief | CFX clamps chainfix strain relief | Optional CFXL clamps chainfix
Now even for larger hose and cable diameters New Now even for larger hose and cable diameters New

C-profile can be integrated into KMA! C-profile assembled in front of KMA!

The H dimension in the tables is based on the maximum cable diameter. Cables with smaller diameters The H dimension in the tables is based on the maximum cable diameter. Cables with smaller diameters
may result in a lower overall clamp housing heights. Tightening torque for CFX clamps 1.5Nm. may result in a lower overall clamp housing heights. Tightening torque for CFX clamps 1.5Nm.

CFX | Standard clamps with standard base CFXL | Clamps with wide base for increased holding force
(suitable for C-profile 92.42.XXX, can be integrated into KMA with C-profile option) Suitable for C-profile 92.52.XXX, C-profile always assembled in front of the e-chain . Cannot be integrated into KMA)
®
Single clamp housing, incl. bottom saddle Single clamp housing, incl. bottom saddle

Part No. Part No. ≤ ø B +2 H Part No. Part No. ≤ ø B +2 H Clamp Part No. Part No. ≤ ø B +2 H Part No. Part No. ≤ ø B +2 H Clamp
Steel Stainless steel* [mm] [mm] [mm] Steel Stainless steel* [mm] [mm] [mm] Bottom saddle Steel Stainless steel* [mm] [mm] [mm] Steel Stainless steel* [mm] [mm] [mm] Bottom saddle
CFX12.1 CFX12.1.E 06 - 12 16 54 CFX30.1 CFX30.1.E 26 - 30 34 71 Stacker saddle CFXL12.1 CFXL12.1.E 06 - 12 16 60 CFXL30.1 CFXL30.1.E 26 - 30 34 77 Stacker saddle
CFX14.1 CFX14.1.E 12 - 14 18 50 CFX34.1 CFX34.1.E 30 - 34 38 75 CFXL14.1 CFXL14.1.E 12 - 14 18 56 CFXL34.1 CFXL34.1.E 30 - 34 38 81
CFX16.1 CFX16.1.E 14 - 16 20 52 CFX38.1 CFX38.1.E 34 - 38 42 79 CFXL16.1 CFXL16.1.E 14 - 16 20 58 CFXL38.1 CFXL38.1.E 34 - 38 42 85
CFX18.1 CFX18.1.E 16 - 18 22 54 CFX42.1 CFX42.1.E 38 - 42 46 83 CFXL18.1 CFXL18.1.E 16 - 18 22 60 CFXL42.1 CFXL42.1.E 38 - 42 46 89
CFX20.1 CFX20.1.E 18 - 20 24 56 CFX46.1 CFX46.1.E 42 - 46 51 115 New CFXL20.1 CFXL20.1.E 18 - 20 24 62 CFX46.1 CFX46.1.E 42 - 46 51 122 New
CFX22.1 CFX22.1.E 20 - 22 26 58 CFX50.1 CFX50.1.E 46 - 50 55 121 New CFXL22.1 CFXL22.1.E 20 - 22 26 64 CFX50.1 CFX50.1.E 46 - 50 55 125 New
CFX26.1 CFX26.1.E 22 - 26 30 67 *Stainless steel material: AISI 304 CFXL26.1 CFXL26.1.E 22 - 26 30 73 *Stainless steel material: AISI 304

Double clamp housing, incl. bottom and stacker saddles Double clamp housing, incl. bottom and stacker saddles
Part No. Part No. ≤ ø B +2 H Part No. Part No. ≤ ø B +2 H Part No. Part No. ≤ ø B +2 H Part No. Part No. ≤ ø B +2 H
Steel Stainless steel* [mm] [mm] [mm] Steel Stainless steel* [mm] [mm] [mm] Steel Stainless steel* [mm] [mm] [mm] Steel Stainless steel* [mm] [mm] [mm]
CFX12.2 CFX12.2.E 06 - 12 16 72 CFX22.2 CFX22.2.E 20 - 22 26 90 CFXL12.2 CFXL12.2.E 06 - 12 16 78 CFXL22.2 CFXL22.2.E 20 - 22 26 86
CFX14.2 CFX14.2.E 12 - 14 18 74 CFX26.2 CFX26.2.E 22 - 26 30 109 CFXL14.2 CFXL14.2.E 12 - 14 18 80 CFXL26.2 CFXL26.2.E 22 - 26 30 115
CFX16.2 CFX16.2.E 14 - 16 20 78 CFX30.2 CFX30.2.E 26 - 30 34 117 CFXL16.2 CFXL16.2.E 14 - 16 20 84 CFXL30.2 CFXL30.2.E 26 - 30 34 123
CFX18.2 CFX18.2.E 16 - 18 22 82 CFX34.2 CFX34.2.E 30 - 34 38 125 CFXL18.2 CFXL18.2.E 16 - 18 22 86 CFXL34.2 CFXL34.2.E 30 - 34 38 131
CFX20.2 CFX20.2.E 18 - 20 24 86 CFXL20.2 CFXL20.2.E 18 - 20 24 92

*Stainless steel material: AISI 304 *Stainless steel material: AISI 304

Triple clamp housing, incl. bottom and stacker saddles Triple clamp housing, incl. bottom and stacker saddles
Part No. Part No. ≤ ø B +2 H Part No. Part No. ≤ ø B +2 H Part No. Part No. ≤ ø B +2 H Part No. Part No. ≤ ø B +2 H
Steel Stainless steel* [mm] [mm] [mm] Steel Stainless steel* [mm] [mm] [mm] Steel Stainless steel* [mm] [mm] [mm] Steel Stainless steel* [mm] [mm] [mm]
CFX12.3 CFX12.3.E 06 - 12 16 100 CFX18.3 CFX18.3.E 16 - 18 22 108 CFXL12.3 – 06 - 12 16 106 CFXL18.3 – 16 - 18 22 114
CFX14.3 CFX14.3.E 12 - 14 18 96 CFX20.3 CFX20.3.E 18 - 20 24 114 CFXL14.3 – 12 - 14 18 102 CFXL20.3 – 18 - 20 24 120
CFX16.3 CFX16.3.E 14 - 16 20 102 CFX22.3 CFX22.3.E 20 - 22 26 120 CFXL16.3 – 14 - 16 20 108 CFXL22.3 – 20 - 22 26 126

*Stainless steel material: AISI 304 *Stainless steel material: AISI 304

Suitable C-profile for CFX clamps Page 884 Suitable C-profile for CFXL clamps Page 884
