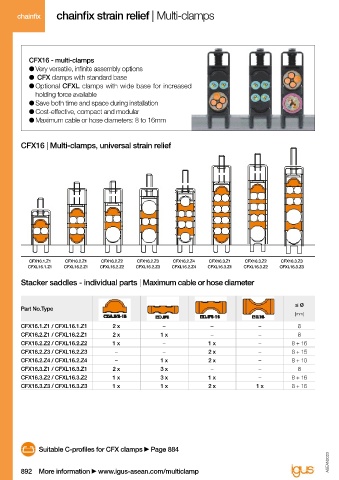

Page 898 - ASEAN Chainflex Catalogue 2023

chainfix chainfix strain relief | Multi-clamps chainfix strain relief | Assembly videos online chainfix

CFX16 - multi-clamps
● Very versatile, infinite assembly options
● CFX clamps with standard base
● Optional CFXL clamps with wide base for increased
holding force available
● Save both time and space during installation
● Cost-effective, compact and modular
● Maximum cable or hose diameters: 8 to 16mm

CFX16 | Multi-clamps, universal strain relief

CFX16.1.Z1 CFX16.2.Z1 CFX16.2.Z2 CFX16.2.Z3 CFX16.2.Z4 CFX16.3.Z1 CFX16.3.Z2 CFX16.3.Z3
CFXL16.1.Z1 CFXL16.2.Z1 CFXL16.2.Z2 CFXL16.2.Z3 CFXL16.2.Z4 CFXL16.3.Z1 CFXL16.3.Z2 CFXL16.3.Z3

Stacker saddles - individual parts | Maximum cable or hose diameter

≤ ø
Part No.Type
[mm]

CFX16.1.Z1 / CFXL16.1.Z1 2 x – – – 8
CFX16.2.Z1 / CFXL16.2.Z1 2 x 1 x – – 8
CFX16.2.Z2 / CFXL16.2.Z2 1 x – 1 x – 8 + 16
CFX16.2.Z3 / CFXL16.2.Z3 – – 2 x – 8 + 15
CFX16.2.Z4 / CFXL16.2.Z4 – 1 x 2 x – 8 + 10
CFX16.3.Z1 / CFXL16.3.Z1 2 x 3 x – – 8
CFX16.3.Z2 / CFXL16.3.Z2 1 x 3 x 1 x – 8 + 16 You can find assembly videos for chainfix clamps
CFX16.3.Z3 / CFXL16.3.Z3 1 x 1 x 2 x 1 x 8 + 16 online at www.igus-asean.com/chainfix

Suitable C-profiles for CFX clamps Page 884
