chainfix chainfix strain relief | Tiewrap plates | Optional chainfix strain relief | Tiewrap plates | Optional chainfix

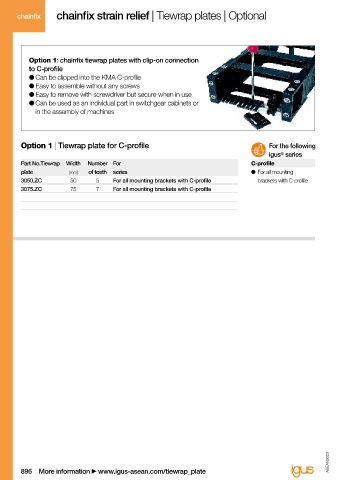

Option 1: chainfix tiewrap plates with clip-on connection Option 2: integrated strain relief for R series E2 e-tubes
to C-profile ● Strain relief integrates completely into the e-tube
● Can be clipped into the KMA C-profile ● Easy to assemble without any screws
● Easy to assemble without any screws ● Can be used as an individual part in switchgear cabinets or
● Easy to remove with screwdriver but secure when in use in the assembly of machines
● Can be used as an individual part in switchgear cabinets or
in the assembly of machines

Option 1 | Tiewrap plate for C-profile For the following Option 2 | Tiewrap plate for R series E2 e-tubes For the following
igus series igus series
®
®
Part No.Tiewrap Width Number For C-profile Part No.Tiewrap Width Number For E2 R
plate [mm] of teeth series ● For all mounting plate [mm] of teeth series ● R58
3050.ZC 50 5 For all mounting brackets with C-profile brackets with C-profile 3050.Z* 50 5 R68 ● R68
3075.ZC 75 7 For all mounting brackets with C-profile 3075.Z 75 7 R68
5850.Z 46 4 R58
5835.Z 32 3 R58 for series 58.050. Bi 50 only.
*Only possible from e-chain ® width 100mm and larger
