chainfix chainfix strain relief | Tiewrap plates | Optional chainfix strain relief | Tiewrap plates | Optional chainfix

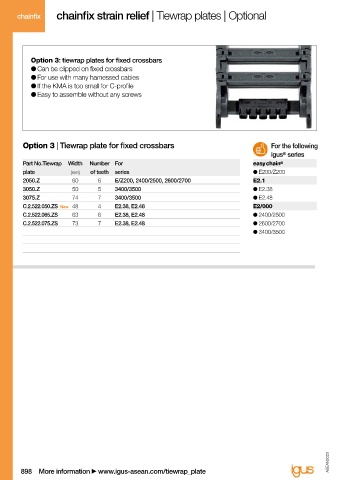

Option 3: tiewrap plates for fixed crossbars Option 4: chainfix tiewrap plates for openable crossbars
● Can be clipped on fixed crossbars ● Can be clipped on openable crossbars
● For use with many harnessed cables ● For use with many harnessed cables
● If the KMA is too small for C-profile ● If the KMA is too small for C-profile
● Easy to assemble without any screws ● Easy to assemble without any screws

Option 3 | Tiewrap plate for fixed crossbars For the following Option 4 | Tiewrap plate for openable crossbars For the following
igus series igus series
®
®
Part No.Tiewrap Width Number For easy chain ® Part No.Tiewrap Width Number For E2/000
plate [mm] of teeth series ● E200/Z200 plate [mm] of teeth series ● 2600/2700/2650
2050.Z 60 6 E/Z200, 2400/2500, 2600/2700 E2.1 2050.Z 60 6 2600/2700/2650, E4.28, E61.52, E6.52 ● 3400/3500/3450
3050.Z 50 5 3400/3500 ● E2.38 3035.ZS 35 3 3400/3500/3450 E4.1L
3075.Z 74 7 3400/3500 ● E2.48 3050.ZS 50 5 3400/3500/3450 ● E4.38L

C.2.522.050.ZS New 48 4 E2.38, E2.48 E2/000 3075.ZS 75 7 3400/3500/3450 ● E4.48L
C.2.522.065.ZS 63 6 E2.38, E2.48 ● 2400/2500 3850.ZS 48 5 E4.32/H4.32, E4.42/H4.42, E4.1
C.2.522.075.ZS 73 7 E2.38, E2.48 ● 2600/2700 14240/14340, 15250/15350, E61.62, E6.62 ● E4.28
● 3400/3500 3875.ZS New 74 7 E4.32/H4.32, E4.42/H4.42, ● E4.32/H4.32
14240/14340, 15250/15350, E61.62, E6.62 ● E4.42/H4.42
4550.ZS 5 E4.56/H4.56, E4.80/H4.80, E4.112, ● E4.56/H4.56
74 14040/14140,14550/14650, ● E4.80/H4.80
15050/15150, E61.80, E6.80L, E6.80, 1640 ● E4.112
4575.ZS 7 E4.56/H4.56, E4.80/H4.80, E4.112, E4/light
80 14040/14140, 14550/14650, ● 14040/14140
15050/15150, E61.80, E6.80L, E6.80, 1640 ● 14240/14340
C622.100.ZS 8 E4.38L, E4.48L ● 14550/14650
● 15050/15150
● 15250/15350
● 1640
E6
● E6.52
● E6.62
● E6.80L
● E6.80
E6.1
● E61.52
● E61.62
● E61.80

ASEAN2023 ASEAN2023

898 More information www.igus-asean.com/tiewrap_plate 3D-CAD, configurators, service life calculation and more www.igus-asean.com/chainfix 899
