chainfix chainfix strain relief | Tiewrap plates | Universal chainfix strain relief | Tiewrap plates | Universal chainfix

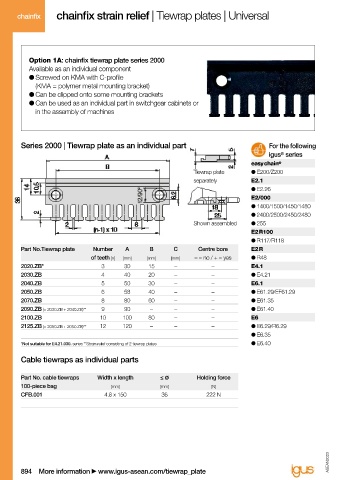

Option 1A: chainfix tiewrap plate series 2000 Option 1B: chainfix tiewrap plate Series 3000
Available as an individual component Available as an individual component
● Screwed on KMA with C-profile ● Screwed on KMA with C-profile
(KMA = polymer metal mounting bracket) (KMA = polymer metal mounting bracket)
● Can be clipped onto some mounting brackets ● Can be clipped onto some mounting brackets
● Can be used as an individual part in switchgear cabinets or ● Can be used as an individual part in switchgear cabinets or
in the assembly of machines in the assembly of machines

Series 2000 | Tiewrap plate as an individual part For the following Series 3000 | tiewrap plate as an individual part For the following
igus series igus series
®
®
easy chain ® easy chain ®
Tiewrap plate ● E200/Z200 Tiewrap plate ● E26/Z26
separately E2.1 separately ● E300/Z300
E2.1
● E2.26 ● E2.38
E2/000 ● E2.48
● 1400/1500/1450/1480 E2/000
● 2400/2500/2450/2480 ● 2600/2700/2650/2680
Shown assembled ● 255 Shown assembled ● 3400/3500/3450/3480
E4.1L
E2 R100 ● E4.38L/R4.38L
● R117/R118 ● E4.48L/R4.48L
Part No.Tiewrap plate Number A B C Centre bore E2 R Part No.Tiewrap plate Number A B C Centre bore ● E4.64L
of teeth [n] [mm] [mm] [mm] – = no / + = yes ● R48 of teeth [n] [mm] [mm] [mm] – = no / + = yes E4Q
2020.ZB* 3 30 15 – – E4.1 3050.ZB 5 50 30 – – ● E4Q.34/H4Q.34
E4Q.44/H4Q.44
2030.ZB 4 40 20 – – ● E4.21 3075.ZB 7 75 55 – – ● E4Q.58/H4Q.58
●
2040.ZB 5 50 30 – – E6.1 3100.ZB 10 100 80 – – ● E4Q.82/H4Q.82
2050.ZB 6 58 40 – – ● E61.29/EF61.29 3115.ZB 11 115 95 – – E4.1
2070.ZB 8 80 60 – – ● E61.35 3125.ZB 12 125 105 – – ● E4.32/H4.32/R4.32
2090.ZB (= 2030.ZB + 2040.ZB)** 9 90 – – – ● E61.40 3150.ZB 15 150 130 – – ● E4.42/H4.42/R4.42
E4.56/H4.56/R4.56
●
2100.ZB 10 100 80 – – E6 3175.ZB 17 175 155 – – ● E4.80/H4.80/R4.80
2125.ZB (= 2050.ZB + 2050.ZB)** 12 120 – – – ● E6.29/R6.29 3200.ZB 20 200 180 90 + ● E4.112/R4.112
● E6.35 3225.ZB 22 225 205 102.5 + ● E4.162
*Not suitable for E4.21.030. series **Strain relief consisting of 2 tiewrap plates ● E6.40 3250.ZB 25 250 230 115 + ● 800
● 840
Cable tiewraps as individual parts Cable tiewraps as individual parts E4/light
● 14040/14140/18840
● 14240/14340
Part No. cable tiewraps Width x length ≤ ø Holding force Part No. cable tiewraps Width x length ≤ ø Holding force ● 14550/14650/19050
100-piece bag [mm] [mm] [N] 100-piece bag [mm] [mm] [N] ● 15050/15150/19850
CFB.001 4.8 x 150 36 222 N CFB.001 4.8 x 150 36 222 N ● 15250/15350
● 1640/1608
E6.1
● E61.52
● E61.62
● E61.80
E6
● E6.52/R6.52
● E6.62
ASEAN2023 ASEAN2023 ● E6.80
E6.80L
●
894 More information www.igus-asean.com/tiewrap_plate 3D-CAD, configurators, service life calculation and more www.igus-asean.com/chainfix 895
