chainfix chainfix strain relief | Clamps | Individual parts chainfix strain relief | Multi-clamps chainfix

Stacker elements for CFX and CFXL clamps CFX12 - multi-clamps
● Built-in ribs for secure grip on cables ● More modular options of the proven igus chainfix strain
®
● Optimised stacker saddle, captive due to locking spring and system
with spring groove for an easy and precise installation ● Universal strain relief for various assembly options
● Conventional stacker saddle ● Save both time and space during installation
● Long contact surface improves the clamp’s stability ● Cost-effective, compact and modular
● More secure due to high strength ● For cable diameters from 6mm to 12mm

CGXX | Bottom saddle to fit into the clamp housing as an individual part CFX12 | Multi-clamps, universal strain relief

CDXX | Conventional stacker saddles for all double and triple clamps as an individual part

CD.XX.C | Optimised stacker saddles for all double and triple clamps as an individual part CFX12.1.Z1 CFX12.2.Z1 CFX12.2.Z2 CFX12.2.Z3 CFX12.3.Z1 CFX12.3.Z2 CFX12.3.Z3 CFX12.3.Z4 Universal bottom and
CFXL12.1.Z1 CFXL12.2.Z1 CFXL12.2.Z2 CFXL12.2.Z3 CFXL12.3.Z1 CFXL12.3.Z2 CFXL12.3.Z3 CFXL12.3.Z4 stacker saddles

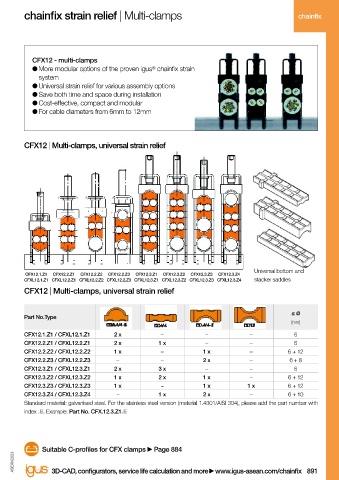

CFX12 | Multi-clamps, universal strain relief

Locking spring Spring groove ≤ ø
Part No.Type
[mm]
CFX12.1.Z1 / CFXL12.1.Z1 2 x – – – 6
CGXX CDXX CDXX.C For ≤ ø CGXX CDXX CDXX.C For ≤ ø CFX12.2.Z1 / CFXL12.2.Z1 2 x 1 x – – 6
Bottom Stacker Stacker clamp [mm] Bottom Stacker Stacker clamp [mm] CFX12.2.Z2 / CFXL12.2.Z2 1 x – 1 x – 6 + 12
saddle saddle saddle saddle saddle saddle CFX12.2.Z3 / CFXL12.2.Z3 – – 2 x – 6 + 8
CG12 CD12 CD.12.C CFX/CFXL12.X 06 - 12 CG26 CD26 CD.26.C CFX/CFXL26.X 22 - 26 CFX12.3.Z1 / CFXL12.3.Z1 2 x 3 x – – 6
CG14 CD14 CD.14.C CFX/CFXL14.X 12 - 14 CG30 CD30 CD.30.C CFX/CFXL30.X 26 - 30 CFX12.3.Z2 / CFXL12.3.Z2 1 x 2 x 1 x – 6 + 12
CG16 CD16 CD.16.C CFX/CFXL16.X 14 - 16 CG34 CD34 CD.34.C CFX/CFXL34.X 30 - 34 CFX12.3.Z3 / CFXL12.3.Z3 1 x – 1 x 1 x 6 + 12
CG18 CD18 CD.18.C CFX/CFXL18.X 16 - 18 CG38 – – CFX/CFXL38.X 34 - 38 CFX12.3.Z4 / CFXL12.3.Z4 – 1 x 2 x – 6 + 10
CG20 CD20 CD.20.C CFX/CFXL20.X 18 - 20 CG42 – – CFX/CFXL42.X 38 - 42 Standard material: galvanised steel. For the stainless steel version (material 1.4301/AISI 304), please add the part number with
CG22 CD22 CD.22.C CFX/CFXL22.X 20 - 22 index .E. Example: Part No. CFX.12.3.Z1.E

Please note: When using chainfix clamps on C-profile in the mounting bracket for series E4.38L/R4.38L, E4Q.34/H4Q.34,
E4.32/H4.32/R4.32 a shortened bottom saddle has to be used. For shortened bottom saddles supplement Part No. with
index "K". Example: CFX12.1K Suitable C-profiles for CFX clamps Page 884
ASEAN2023 ASEAN2023

890 More information www.igus-asean.com/cfx_clamp www.igus-asean.com/multiclamp 3D-CAD, configurators, service life calculation and more www.igus-asean.com/chainfix 891
